9kW Hybrid inverters, high efficiency.For solar system for home, safe and stablity. Intelligent control.

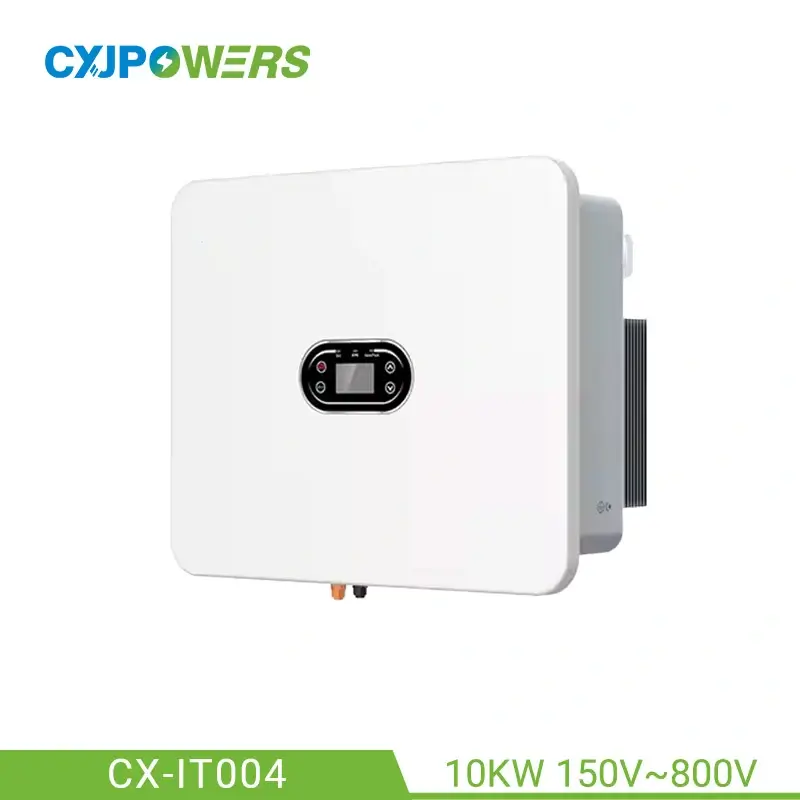

Model: CX-IT004
Inverter Type: Hybrid
Rated Power: 10kW (Peak Eff. 98.4%)
Battery Voltage: 150V~800V
AC Output: 230Vac/400Vac, 50Hz
Communication: RS485,CAN,WIFI/4G/LAN,Bluetooth(optional)
Operating Temp.: -20℃-60℃

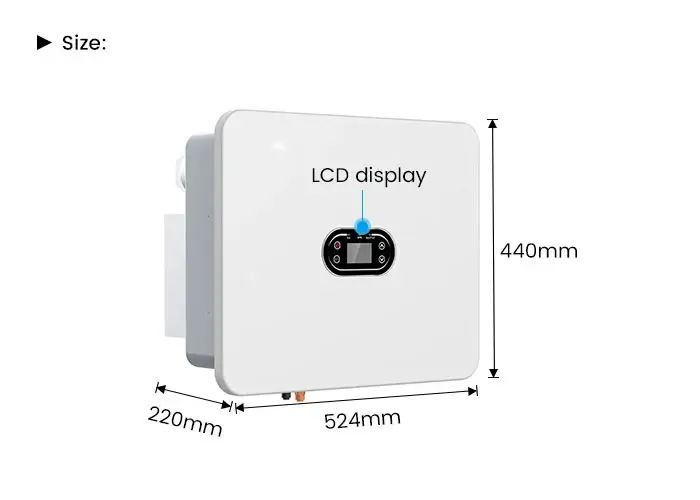

Dimension: 524×440×220mm
Weight: ≈25kg
MOQ: ≥1pcs
CXJPowers 10kW hybrid inverter can not only convert the direct current (DC) of solar panels into alternating current (AC) that can be used by households, but also connect to battery energy storage systems to achieve self-generation and self-use of photovoltaic power generation, storage of surplus electricity, or peak-valley arbitrage. The wide MPPT voltage range of 150VDC~800VDC is suitable for various weather conditions. Multi-mode coordination (grid-connected/off-grid/hybrid), high conversion efficiency (＞98.4%) and intelligent energy scheduling.
10000W Hybrid Inverter
Green energy and save electricity costs
Adapt to various sunlight conditions.
Real-time monitoring and view the parameter
User-friendly, good use experience
Effectively extend equipment life.
Provide reliable power for various devices.
98.4% Peak Efficiency, low energy loss
Multiple protections to ensure safe operation.
10kW hybrid inverter for home solar system CX-IT004 has multiple safety protections (low voltage / anti-islanding protection), supports Bluetooth/WiFi remote monitoring, uses pure sine wave output, and is compatible with all kinds of electrical appliances. Its 180V-1000V wide MPPT voltage range ensures efficient operation in low-light environments, and its 98.4% ultra-high conversion efficiency greatly increases power generation. The silent design (<25dB) and ultra-low standby power consumption make it easier to use, making it an ideal choice for home and industrial and commercial photovoltaic systems.

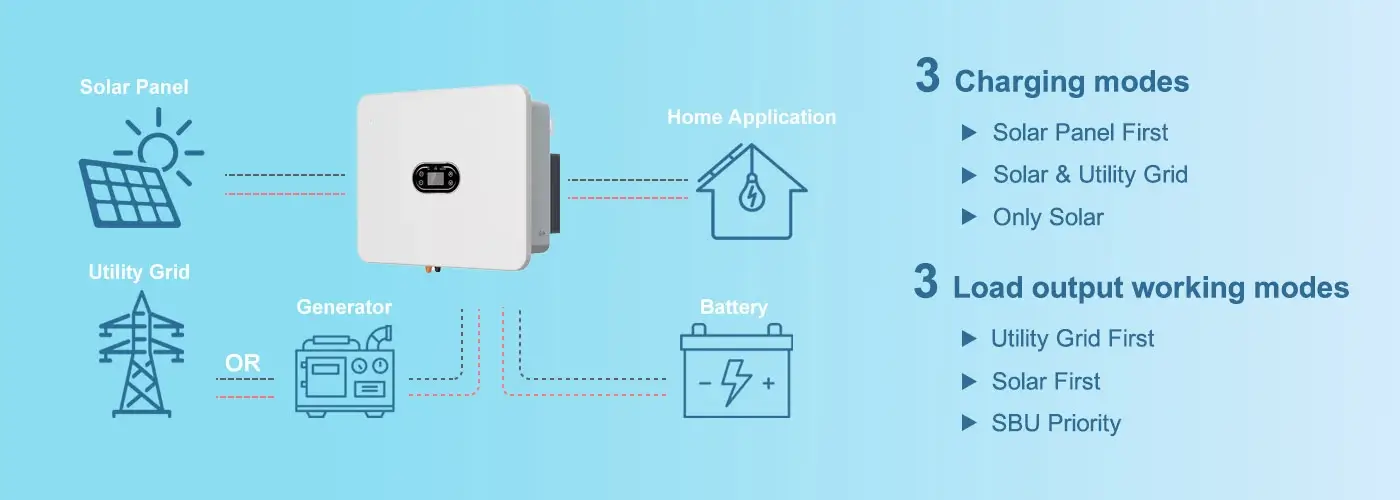

This inverter for home solar system intelligently manages power flow with dual operating modes. In grid-tied mode, it prioritizes solar energy while storing excess in batteries or feeding back to the grid. When off-grid, it automatically switches to battery power for uninterrupted supply. The system offers flexible charging options (solar/grid/hybrid) with time-based optimization, and delivers pure sine wave output through three configurable modes (grid-tied/off-grid/hybrid). Featuring MPPT tracking and 98.4% conversion efficiency, it ensures optimal performance for 24/7 power needs.
| Item Name | 10kW Hybrid Inverter for Home Solar System | ||||
| Model | CX-IT004 | Rated Power | 10000W | ||
| Inverter Type | Hybrid | Efficiency | 98.4% (Peak.) | ||
| Battery Type | Lithium / Lead-Acid | Communication | RS485, CAN, WIFI/4G/LAN, Bluetooth(optional) | ||
| Battery Voltage | 150V~800V | Dimensions(LxWxH) | 524×440×2200mm | ||
| MPPT Voltage Range | 180VDC-1000VDC | Weight | Approx. 25kg | ||
Get A Free Quotation & More Details. Contact Us Now!
CX-IT004 10kW hybrid inverter for home solar system is suitable for scenarios such as household rooftop photovoltaics, industrial and commercial power stations, off-grid energy storage and emergency power supply. It is compatible with various photovoltaic modules and battery packs to provide stable and clean electricity for residences, factories, base stations, etc., helping to reduce electricity costs and improve energy self-sufficiency.
Household Power System
Car Charging Station
RV or Ship System
Base Station System
|
Wholesale 10kW Hybrid Inverter for Home Solar System |
|
|
Model |
CX-IT004 |
|
Input (DC) Parameters |
|
|
Maximum input voltage (V) |
1100 |
|
Maximum MPPT curent (A) |
20 |
|
Maximum mppt short-circuit current (A) |
40 |
|
Starting votage (V) |
150 |
|
MPPT voltage range (V) |
180-1000 |
|
MPPT number |
2 |
|
Number of mppt strings per channel |
1 |
|
Battery (DC) Parameters |
|
|
Battery Type |
Lithium battery |
|
Battery Voltage Range (V) |
150-800 |
|
Battery Energgy (kwh) |
10 |
|
Maximum charge and discharge current (A) |
50 |
|
Battery communication |
CAN/485 |
|
Output (AC) Parameters |
|
|
Rated output power (W) |
10000 |
|
Maximum apparent power (VA) |
11000 |
|
Rated voltage (M) |
3/N/PE,380/400 |
|
Rated grid frequency (Hz) |
50/60 |
|
Maximum output current (A) |
16.7 |
|
Power factor |
0.8 lead ~0.8 lag |
|
Total current harmonic distortion rate |
<3% (rated power) |
|
Iutput (AC) Parameters |
|
|
Maximum input Power (VA) |
15000 |
|
Maximum input current (A) |
22.7 |
|
Rated voltage (M) |
3/N/PE,380/400 |
|
Rated grid frequency (Hz) |
50/60 |
|
Off-grid (AC) Parameters |
|
|
Rated output power (W) |
10000 |
|
Maximum output Power (VA) |
11000 |
|
Rated voltage (M) |
3/N/PE,380/400 |
|
Rated grid frequency (Hz) |
50/60 |
|
Peak Power (Ws) |
15000,60 |
|
Switching time (ms) |
<10 |
|
Maximum output current (A) |
16.7 |
|
THDv (Linear Load) |
<2%(rated power) |
|
Efficiency |
|
|
Maximum efficiency |
＞98.4% |
|
European efficiency |
＞98.8% |
|
Charge and discharge efficiency |
＞97.8% |
|
General Parameter |
|
|
Dimensions(WxHxD) |
524x440x220 mm |
|
Weight |
<25kg |
|
Operating temperature range |
-25℃~ +60℃ |
|
Cooling Method |
Natural heat dissipation |
|
Maximum high working altitude |
4000m |
|
Relative humidity |
0~100% |
|
Protection function |
Dc switch, island protection, output overcurrent protection, PV/ battery reverse protection, IV curve scanning, direct surge protection (Level 2), AC surge protection (Level 2),Insulation impedance detection, AC leakage current detection |
|
Level of protection |
IP66 |
|
Noise (dB) |
<35dB |
|
connection |
G98/G99,VDE-AR-N 4105/NDE V0124,EN 50549-1,VDE 0126/UTE C 15/VFR:2019RD 1699/RD244/UNE206006/UNE 206007-1, CEIO-21.C10/11,NRS 097-2-1,TOR,EIFS 2018.2,IEC 62116,IEC 1727,IEC60068IEC 61683EN 50530,MEA,PEA |
|
Safety regulations/EMC standards |
IEC 62109-1/-2,EN 61000-6-1/-3 |
|
Display and communication |
|
|
Display |
LCD/LED+APP |
|
Communication |
RS485、CAN、WIFI/4G/LAN、Bluetooth(optional) |
An inverter converts DC (direct current) electricity from solar panels or batteries into AC (alternating current) for household or grid use.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Match the inverter's wattage to your total load requirements, plus a 20-30% buffer for surge power (e.g., 3000W for a 2400W load).
