CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
Applied to RVs, UPS, golf carts, boats, forklifts, electric power & solar storage systems etc.

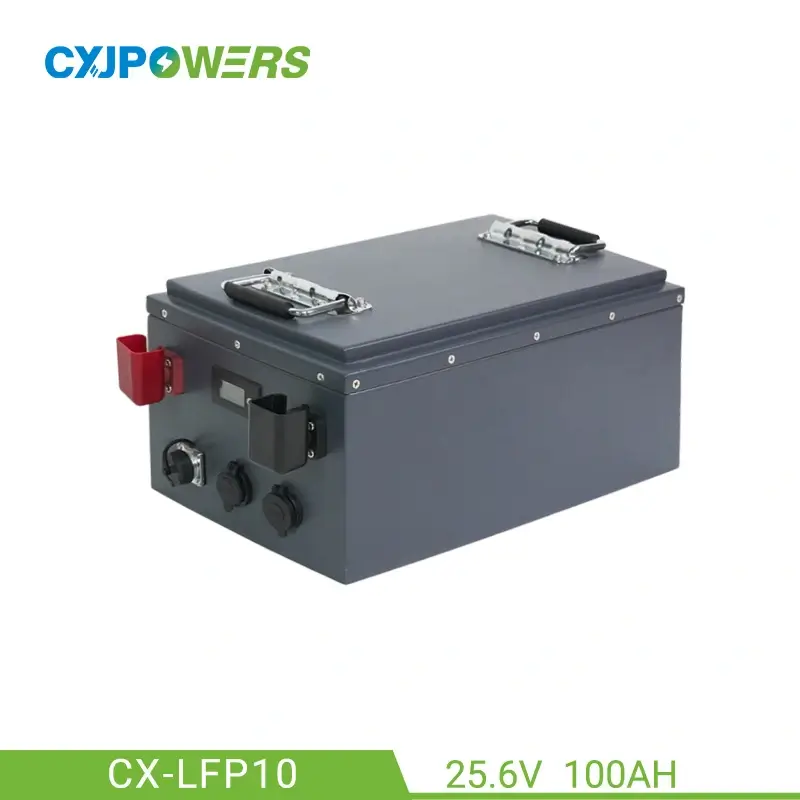

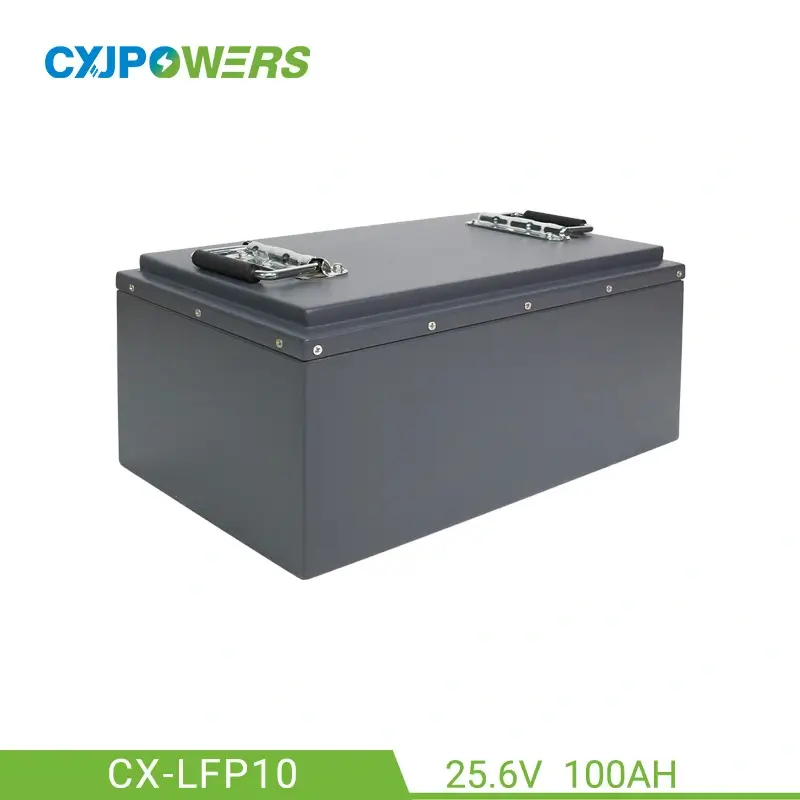

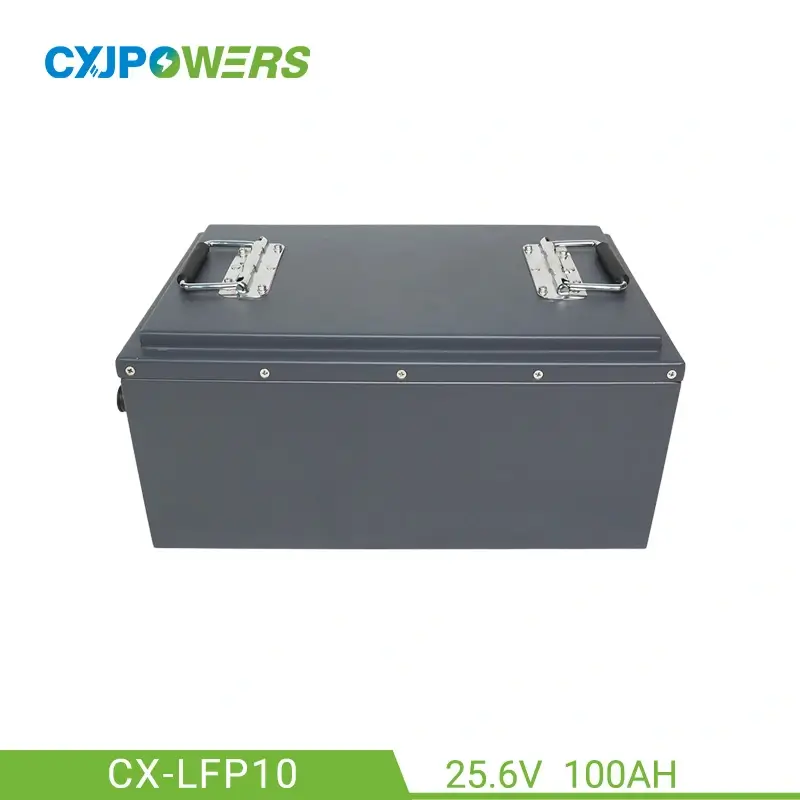

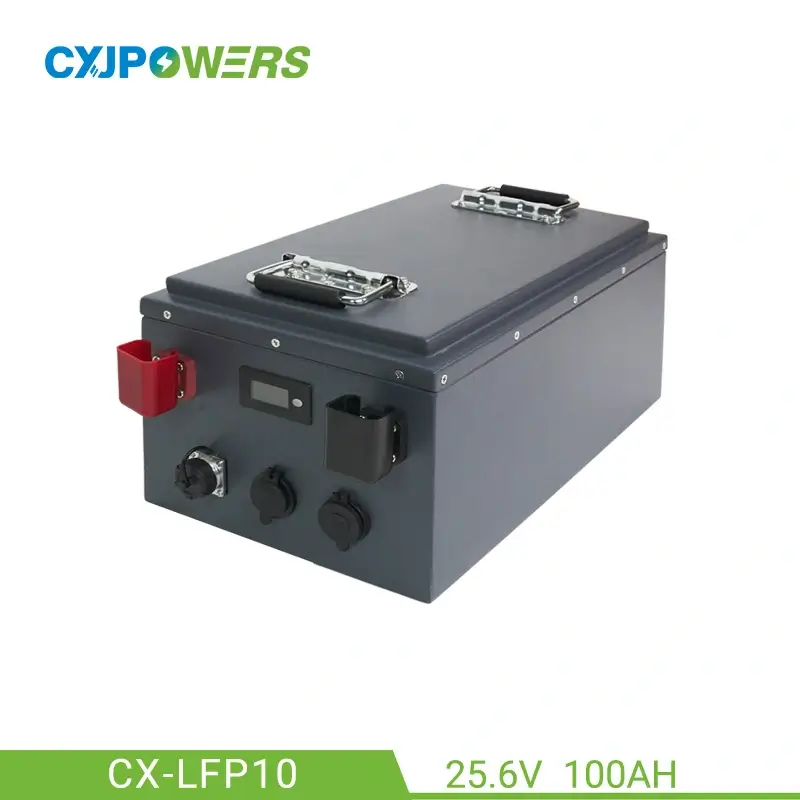

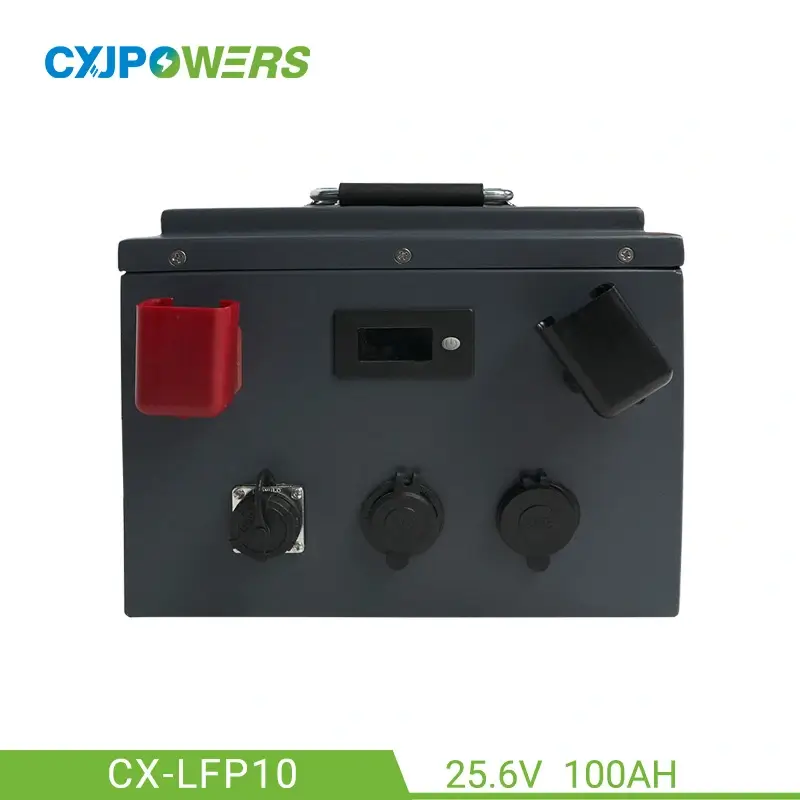

Model: CX-LFP10
Rated energy: 2.56kWh
Rated voltage: 25.6V
Rated capacity: 100Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 22.4V～26.2V
Max charge current: 100A
Max cont discharge current: 200A

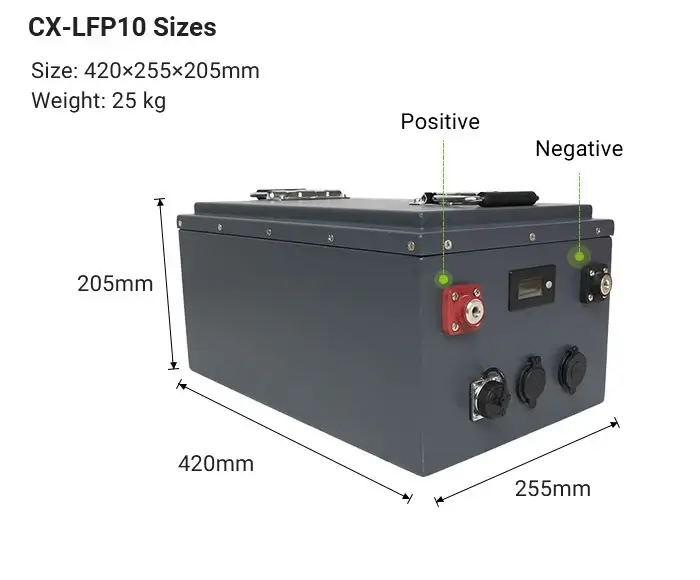

Dimension(L×W×H): 420×255×205mm
Weight: ≈25 kg
MOQ: ≥ 2pcs
CXJPowers 24V 100Ah LiFePO4 battery is built with premium A-grade LiFePO4 cells, a robust metal casing, and advanced lithium energy technology. The CX-LFP10 can be uesd as RV or trolling motor battery, delivering a 2.56KWh energy storage capacity. Equipped with a smart BMS, it enhanced safety for long-lasting reliability. Ideal for solar power systems and off-grid applications, this battery provides stable, high-efficiency power in a compact yet durable design. The CXJPowers LiFePO4 battery offers superior performance, perfect choice for demanding power needs.
24V LiFePO4 Battery Pack

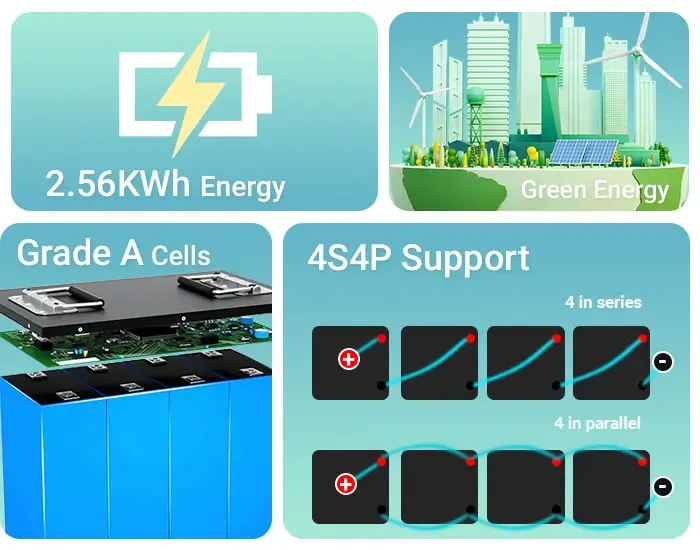

2.56KWh A-grade LiFePO4 battery.
Multiple protections & 100% safety.
State of charge, Depth of discharge.
6000+ long life cycle(80% DOD).
60% lighter than lead-acid batteries.
3x faster than lead-acid batteries.
No heavy metals, no pollution.
Powers 99% of all appliances.
CXJPowers 24V LifePO4 battery has a built-in smart battery management system(BMS) to prevent batteries from overcharging, over-discharging, over-current and short circuit. And it has high sealing performance and can be used in various harsh environments.
Built-in Smart BMS, High Safety & Mutilple Protection

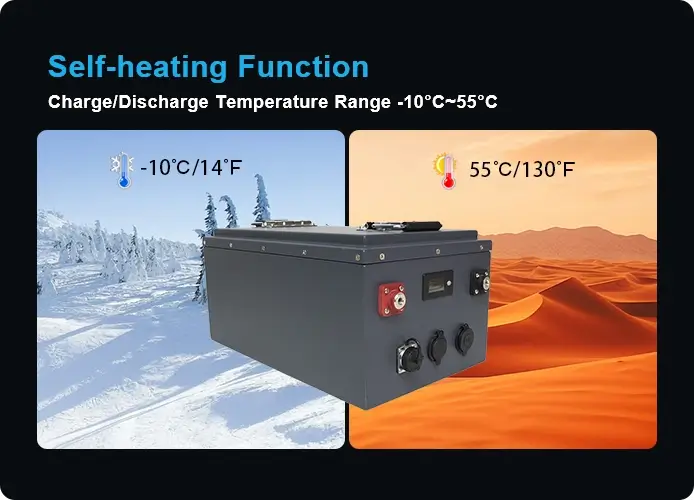

Self-Heating Function, Can Work in -10℃ Outdoor Environment
| Item Name | 24V 100Ah LiFePO4 Battery Packs | ||||
| Model | CX-LFP10 (24V 100Ah) | Rated Energy | 2.56KWh | ||
| Battery Type | LiFePO4 cell | Max Continuous Charging Current | 100A | ||
| Cycle Life | >6000 times | Max Continuous Discharging Current | 200A | ||
| Voltage Range | DC 22.4~26.2V | Dimensions(LxWxH) | 420×255×205mm | ||
| Bluetooth & Display | Optional | Weight | Approx. 25kg | ||
Get A Free Quotation & More Details. Contact Us Now!
LiFePO4 batteries have a service life more than 5 times that of standard lead-acid batteries and are 60% lighter. It can directly replace lead-acid batteries.
CX-LFP10 is compact, high-performance 24V 100Ah LiFePO4 battery that delivers 2.56kWh of reliable energy. It suitable for off-grid living, RVS, trolling motor, and so on.
Camping
Solar energy storage system
Home backup energy
Trolling motor

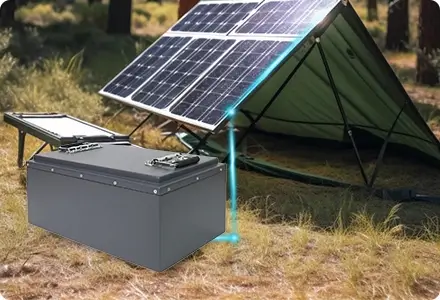

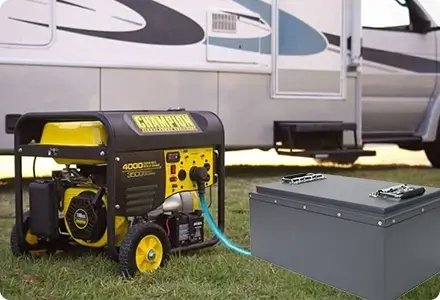

3 methods to charge LiFePO4 battery: solar energy, charging with a charger connected to the grid, and charging with a generator. Lithium batteries can be charged safely and efficiently, maximizing their performance and lifespan. They are very suitable for outdoor and off-grid use.
|
24V 100Ah LiFePO4 Battery Packs |
|
|
Model |
CX-LFP10 |
|
Battery Parameters |
|
|
Voltage |
25.6V |
|
Capacity |
100Ah (Standard) |
|
Life Cycle |
＞6000 cycles（80%DOD，25℃） |
|
Battery Working Voltage |
DC 22.4 ~26.2V |
|
Electrical Parameters |
|
|
Rated Energy |
2.56kWh |
|
Minimun Discharge Voltage |
22.4V |
|
Max Continuous Charging Current |
100A |
|
Max Continuous Discharging Current |
200A |
|
Maximum Charging Voltage |
26.2V |
|
Product Parameters |
|
|
Dimension (LxWxH) |
420×255×205mm |
|
Net Weight |
25KG |
|
IP Grade |
IP65 |
|
Operating Temperature Range |
Charging：-0~55℃ Discharging：-10~55℃ |
|
Cooling Mode |
Natural Cooling |
|
Operating Humidity Range |
0~95% (NO Condensation) |
|
Max Working altitude |
4000m (>3000m Need to Derate) |
|
Display Screen |
Optional |
|
DC Charging Port |
Wall-Through Fence Terminal |
|
Optional Features |
|
|
Bluetooth |
Provide Mobile APP for Monitoring |
Divide 2,400Wh by your device's wattage (e.g., 600W = 4 hours). Efficiency may reduce actual runtime.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Yes, if handled properly. Follow manufacturer guidelines, avoid short circuits, overcharging, and extreme temperatures. Use a compatible BMS (Battery Management System) for protection.Once the battery is fully charged, disconnecting it promptly is recommended to avoid unnecessary damage.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
