CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
Provides reliable backup power for data centers, telecommunication systems, renewable energy storage, industrial equipment and UPS setups.

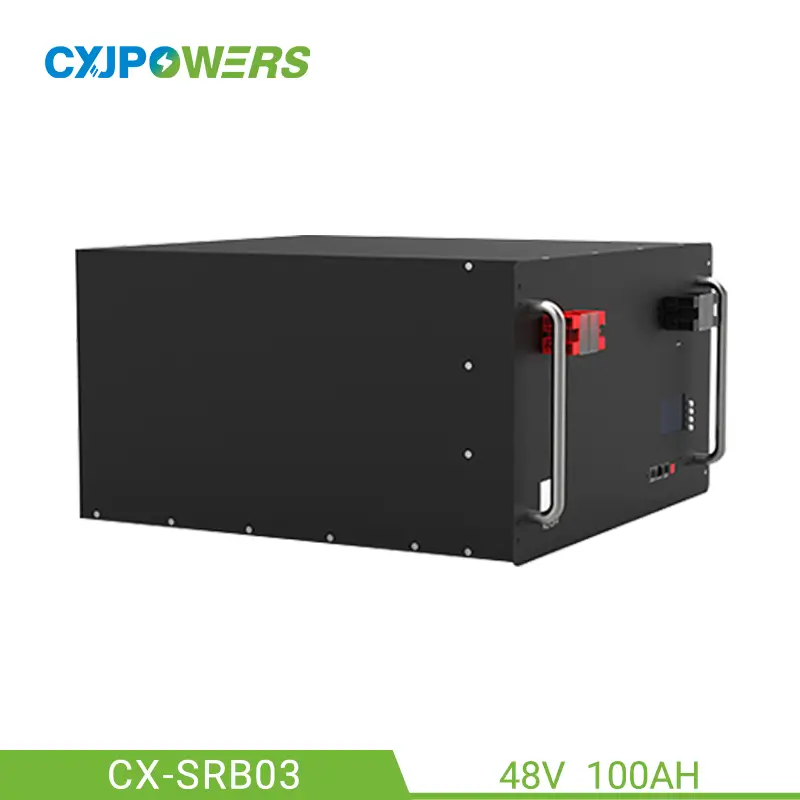

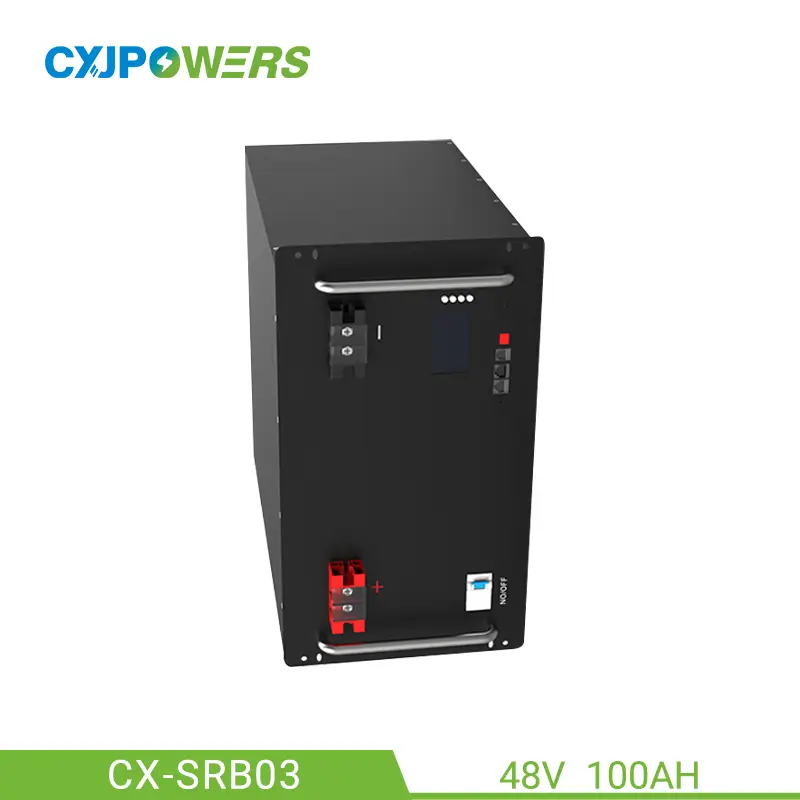

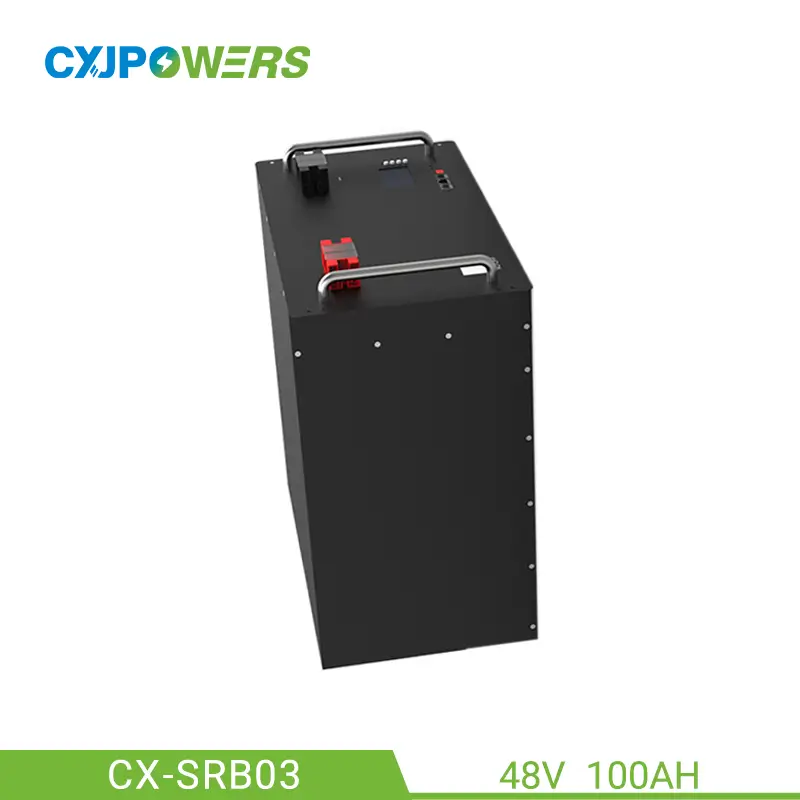

Model: CX-SRB03
Rated energy: 4.8 kWh
Rated voltage: 48V
Rated capacity: 100Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: DC40.5～54V
BMS communication: RS485, RS232, CAN, Ethernet
IP Grade: IP20
Dimension(LxWxH): 482x451x266mm
Weight: 40kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.
CXJPowers server rack battery system adopts 48V rack mount lithium battery configuration and advanced lithium iron phosphate (LiFePO4) technology. Our solution integrates multiple certified safety architectures, supports hot-swappable modular design, and enables seamless capacity expansion, making it an ideal choice for data center backup power, industrial UPS systems, and renewable microgrid applications that require high-voltage DC power solutions.
CXJPowers New Energy · Empowers Better Life
Storage capacity up to 4.8kWh.
Intergrated smart BMS withself-balance for each serial of cell.
The safest Lifepo4 Battery,no fire and no explosions.
Applied to photovoltaic systems.
Ultra-thin thickness, light weight.
Wall-mounted installation, takes up no space.
Extra long service life.
Peak/Valley power prices save cost.
| Item Name | Wholesale LiFePO4 48V Server Rack Battery | ||
| Model | CX-SRB03 | Shell Material | Metal |
| Voltage | 48V | Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Capacity | 100Ah | Battery Cycle Life | ＞6000 Cycles |
| Energy | 4800Wh | Voltage Range | DC40.5～54V |
| BMS Communication | RS485, RS232, CAN, Ethernet | ||
| DC Charging Port | Wall-through fence terminal | ||
| Dimension (LxWxH) | 482mm x 451mm x 266mm | Weight | 40Kg |
| IP Grade | IP20 | ||
Get A Free Quotation & More Details. Contact Us Now!
Metal Casing Material
Sturdy structure, not easy to deform, V0 grade flame retardant shell.

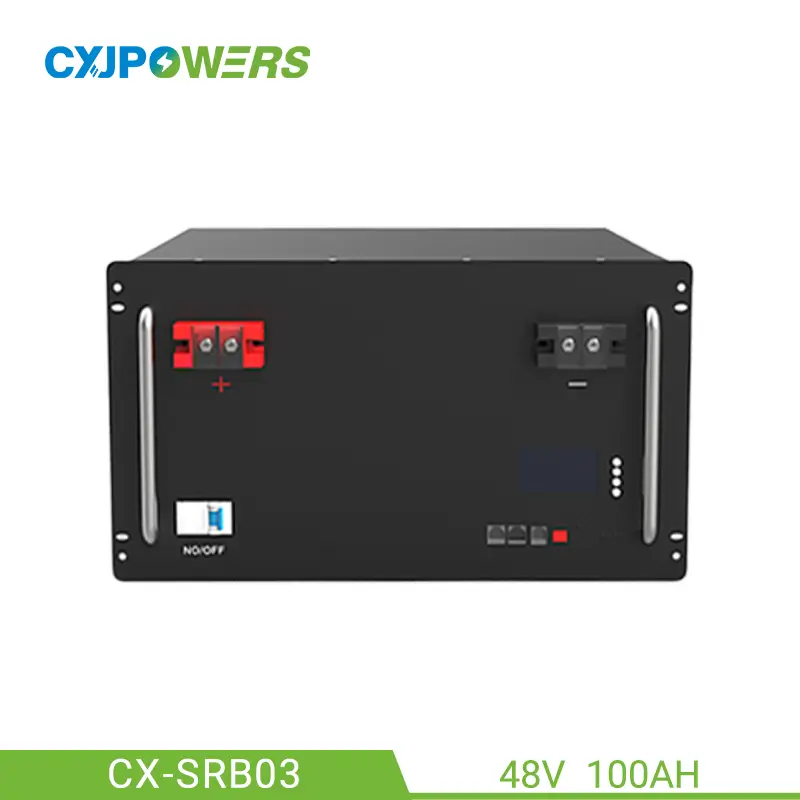

Simple Panel
Panels that are clear at a glance.
Screen and Functions
Clear LED display and annotations for each function and switch.
Handle Design
There are two simple handles for easy taking out and putting in.
CX-SRB01 is a 24V 100Ah LiFePO4 rack-mount battery. Perfect for data center backup power, new energy systems, industrial power and communication base stations, etc.
Communication Base Station
Data Center Energy Storage
Industrial Energy Storage
Solar Energy Storage
CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
| Model | CX-SRB01 | CX-SRB02 | CX-SRB03 | CX-SRB04 |
| Shell Material | Metal | |||
| Battery Type | LiFePO4(Lithium iron phosphate) | |||
| Voltage | 24V | 48V | ||
|
Voltage Range
|
DC21.8~28.8V | DC21.6~28.8V | DC40.5~54V | |
| Capacity | 100Ah 2400Wh | 200Ah 4800Wh | 100Ah 4800Wh | 200Ah 9600Wh |
| Dimension (LxWxH) | 442x440x145mm | 560x440x170mm | 482x451x266mm | 530x442x221mm |
| Net Weight | 38KG | 48KG | 40KG | 80KG |
| Gross Weight | 40KG | 50KG | 42KG | 85KG |
| Battery Cycle Life | ＞6000 Cycles | |||
| Operating Temperature |
Charging: 0~45℃ Discharging: -30~55℃
|
|||
| BMS Communication | RS485, RS232, CAN, Ethernet | |||
| IP Grade | IP20 | |||
| DC Charging Port | Wall-through fence terminal | |||
| Installation Mode | Floor style | |||
|
Display Screen
|
Optional
|
|||
Yes, we welcome sample order to test and check quality. samples are acceptable.
We have a large inventory and are ready to ship.
Yes, but there is a minimum order quantity required.
Our lithium battery packs can power most home appliances, electrical systems, solar storage systems and more. But this also depends on the power output of the battery pack.
