CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
24V 100Ah server rack mount battery. Lithium iron phosphate battery. Efficient off-grid system, clean and environmentally friendly energy storage method. Order now!

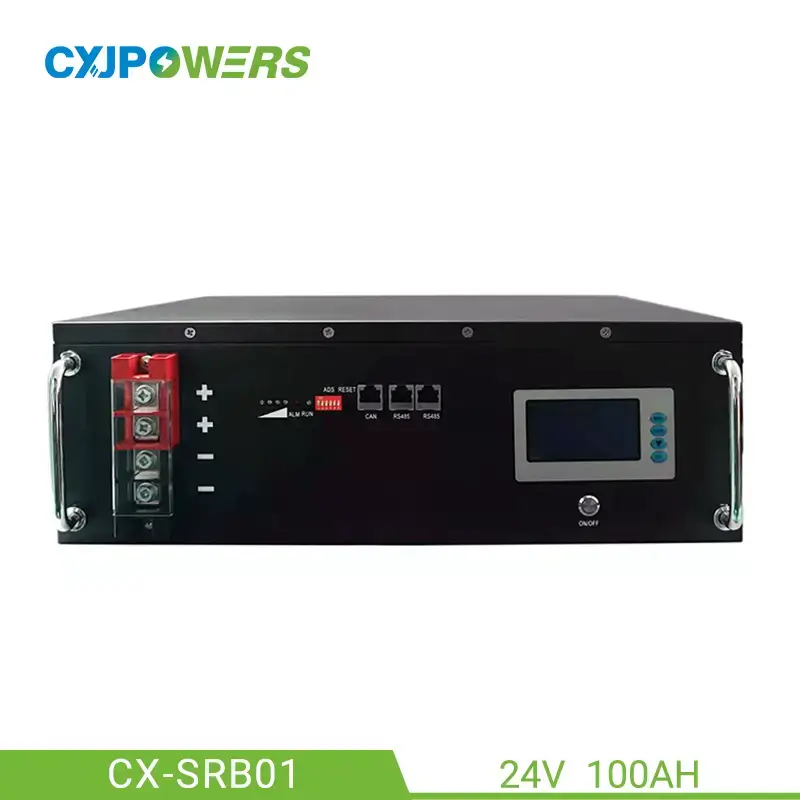

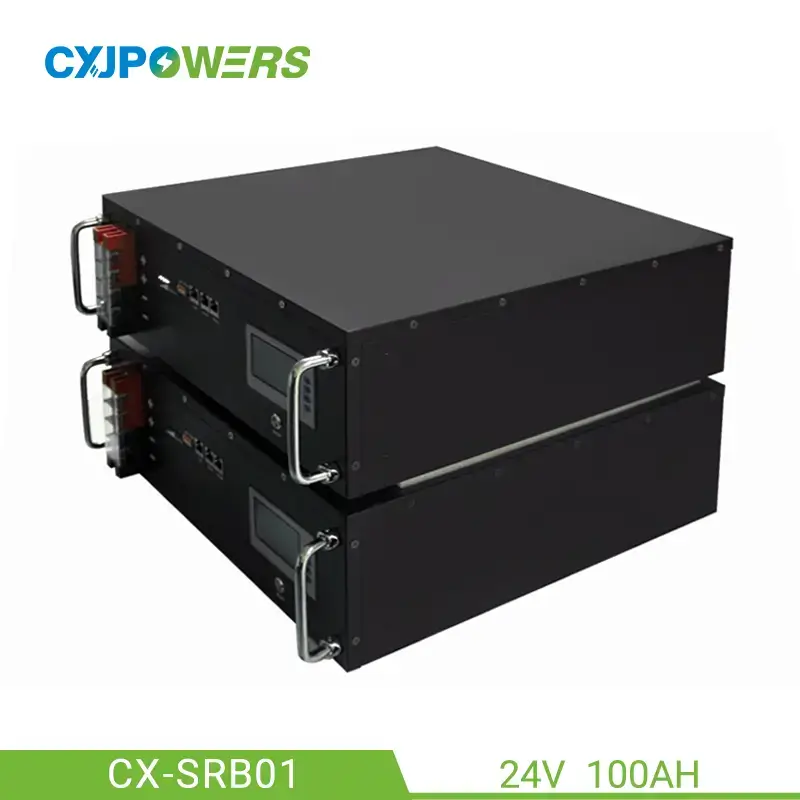

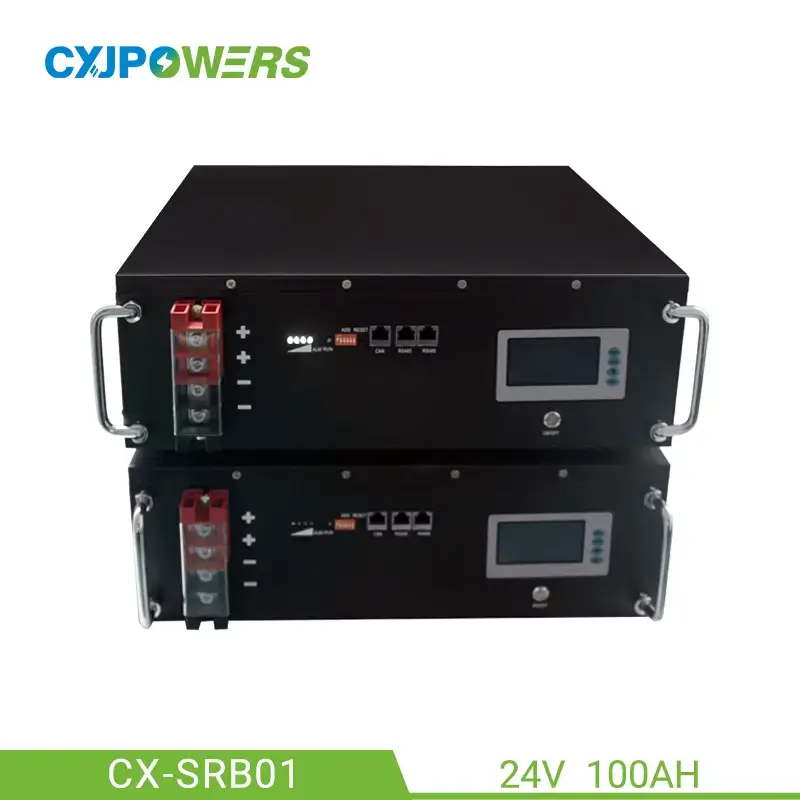

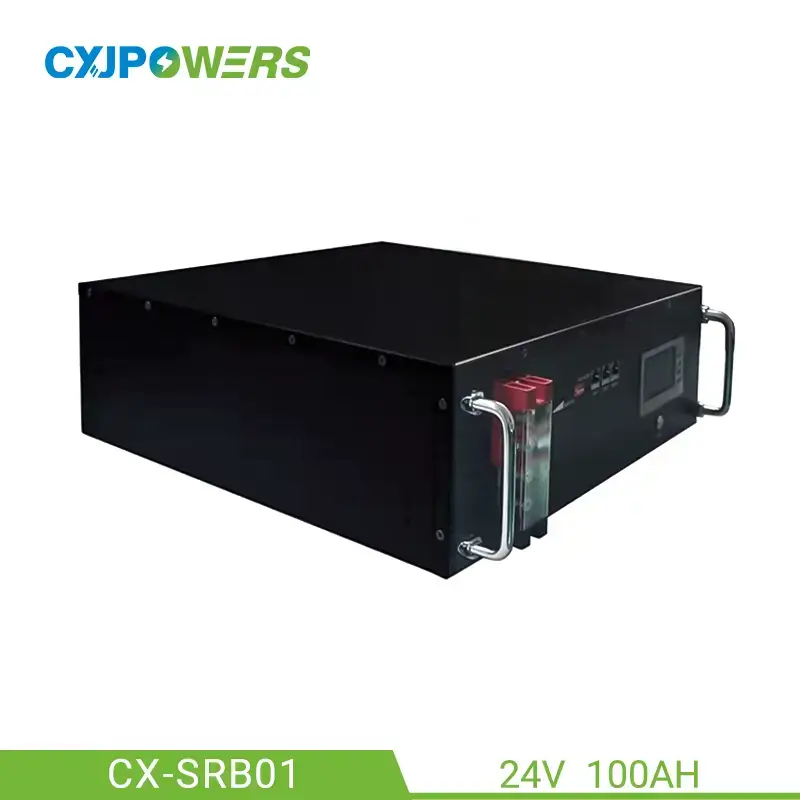

Model: CX-SRB01
Rated energy: 2.4 kWh
Rated voltage: 24V
Rated capacity: 100Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 21V～29.2V
BMS communication: RS485/RS232/CAN/Ethernet
IP Grade: IP20

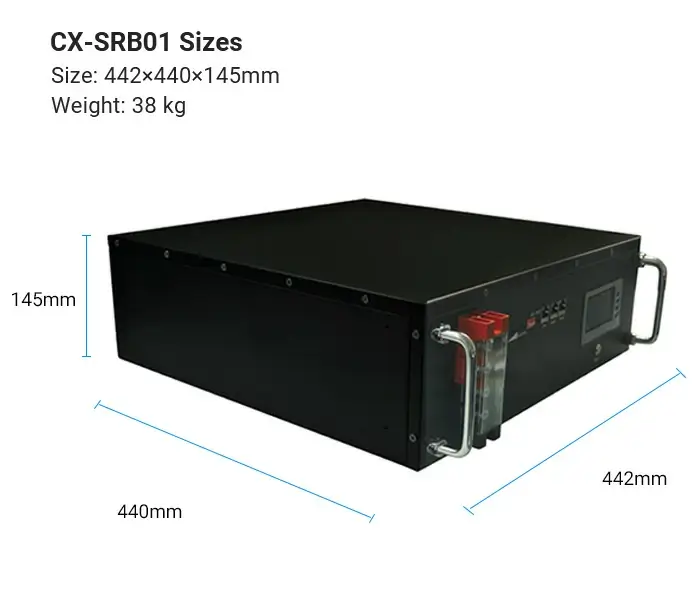

Dimension(L×W×H): 442x440x145mm
Weight: 38 kg
MOQ: ≥ 1pcs
CXJPowers is a top home battery storage supplier and ESS battery manufacturer, specializing in the research and development, production and sales of solar energy storage batteries (rack-mounted, wall-mounted, stacked, etc.), integrated LiFePO4 ESS (energy storage system) and various LiFePO4 lithium battery packs, providing customized lithium energy solutions.
CXJPowers 24V server rack battery offer ultra-compact power density and scalable storage capacity for mission-critical infrastructure. Our devices feature lithium iron phosphate (LiFePO4) batteries and a variety of certified safety architectures, support hot-swappable modules, and seamless scalability for data centers, industrial UPS, and renewable microgrids.
CXJPowers New Energy · Empowers Better Life
Storage capacity up to 2.4kWh.
Intergrated smart BMS withself-balance for each serial of cell.
The safest Lifepo4 Battery,no fire and no explosions.
Applied to photovoltaic systems.
Ultra-thin thickness, light weight.
Wall-mounted installation, takes up no space.
Extra long service life.
Peak/Valley power prices save cost.
| Item Name | Wholesale LiFePO4 24v Server Rack Battery | ||
| Model | CX-SRB01 | Shell Material | Metal |
| Voltage | 24V | Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Capacity | 100Ah | Battery Cycle Life | ＞6000 Cycles |
| Energy | 2400Wh | Voltage Range | DC21.8～28.8V |
| BMS Communication | RS485, RS232, CAN, Ethernet | ||
| DC Charging Port | Wall-through fence terminal | ||
| Dimension (LxWxH) | 442mm x 440mm x 145mm | Weight | 38Kg |
| IP Grade | IP20 | ||
Get A Free Quotation & More Details. Contact Us Now!
Metal Casing Material
Sturdy structure, not easy to deform, V0 grade flame retardant shell.

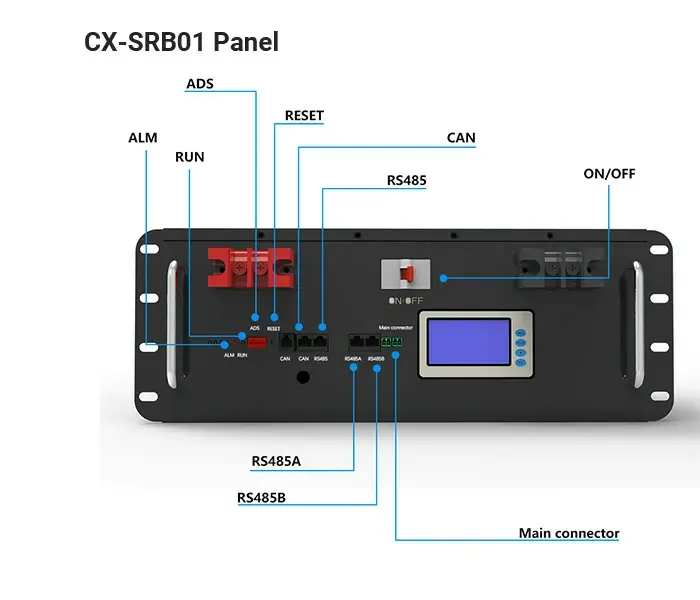

Simple Panel
Panels that are clear at a glance.

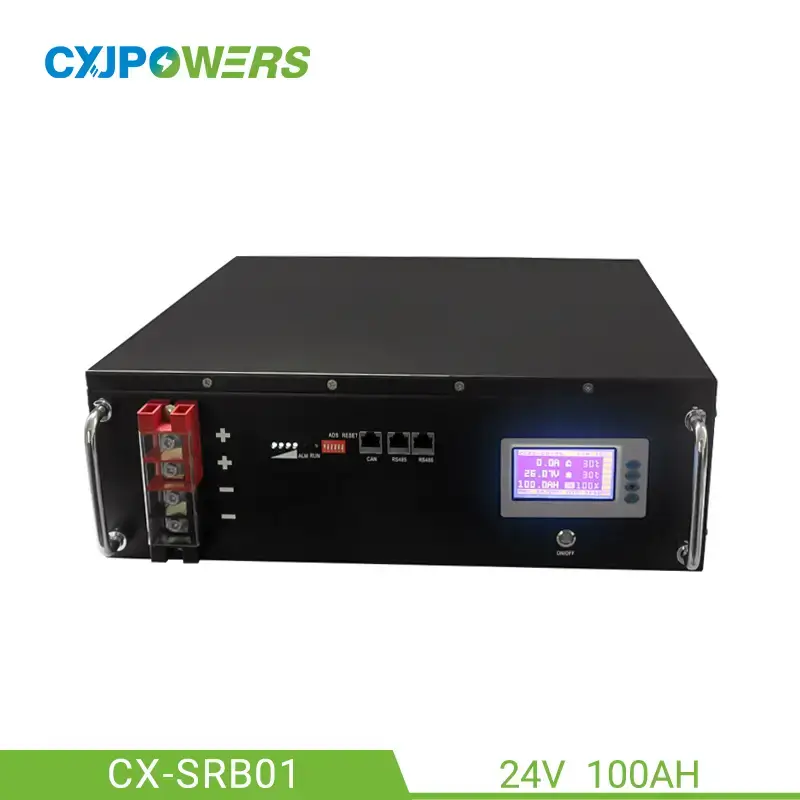

Screen and Functions
Clear LED display and annotations for each function and switch.
Handle Design
There are two simple handles for easy taking out and putting in.
CX-SRB01 is a 24V 100Ah LiFePO4 rack-mount battery. Perfect for data center backup power, new energy systems, industrial power and communication base stations, etc.
Communication Base Station
Data Center Energy Storage
Industrial Energy Storage
Solar Energy Storage
CAN/RS485/RS232 communication protocol lithium-ion battery or LiFePO4 battery is compatible with most inverters on the market.
| Model | CX-SRB01 | CX-SRB02 | CX-SRB03 | CX-SRB04 |
| Shell Material | Metal | |||
| Battery Type | LiFePO4(Lithium iron phosphate) | |||
| Voltage | 24V | 48V | ||
|
Voltage Range
|
DC21.8~28.8V | DC21.6~28.8V | DC40.5~54V | |
| Capacity | 100Ah 2400Wh | 200Ah 4800Wh | 100Ah 4800Wh | 200Ah 9600Wh |
| Dimension (LxWxH) | 442x440x145mm | 560x440x170mm | 482x451x266mm | 530x442x221mm |
| Net Weight | 38KG | 48KG | 40KG | 80KG |
| Gross Weight | 40KG | 50KG | 42KG | 85KG |
| Battery Cycle Life | ＞6000 Cycles | |||
| Operating Temperature |
Charging: 0~45℃ Discharging: -30~55℃
|
|||
| BMS Communication | RS485, RS232, CAN, Ethernet | |||
| IP Grade | IP20 | |||
| DC Charging Port | Wall-through fence terminal | |||
| Installation Mode | Floor style | |||
|
Display Screen
|
Optional
|
|||
Yes, we welcome sample order to test and check quality. samples are acceptable.
We have a large inventory and are ready to ship.
Yes, but there is a minimum order quantity required.
Our lithium battery packs can power most home appliances, electrical systems, solar storage systems and more. But this also depends on the power output of the battery pack.
