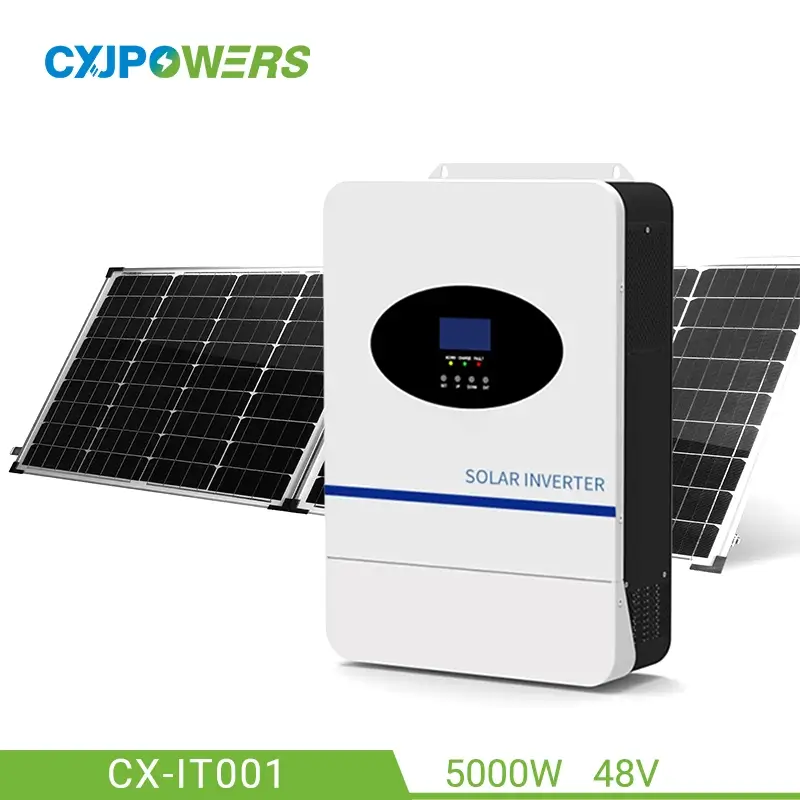

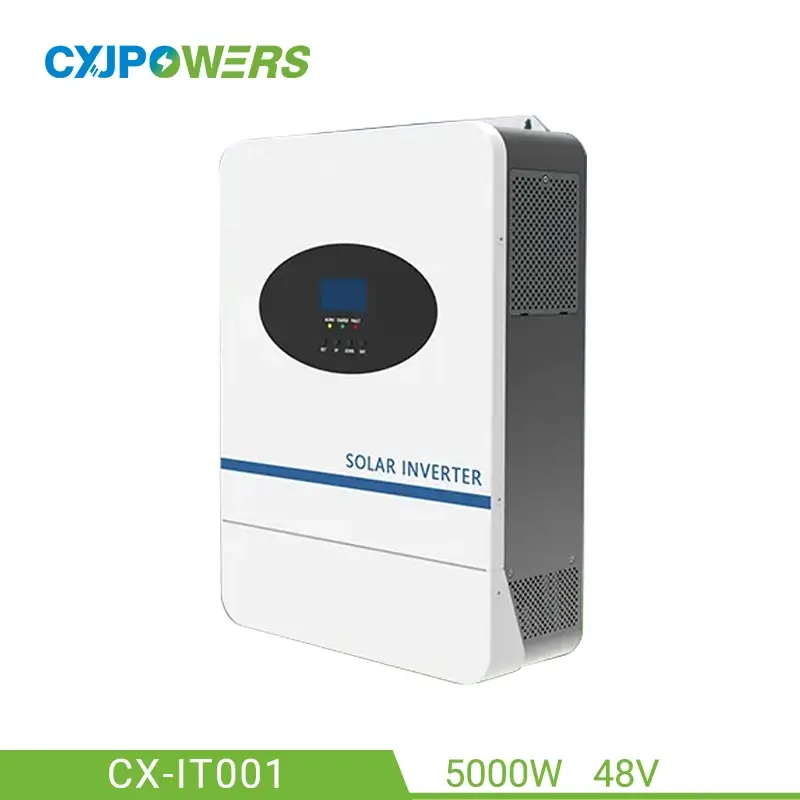

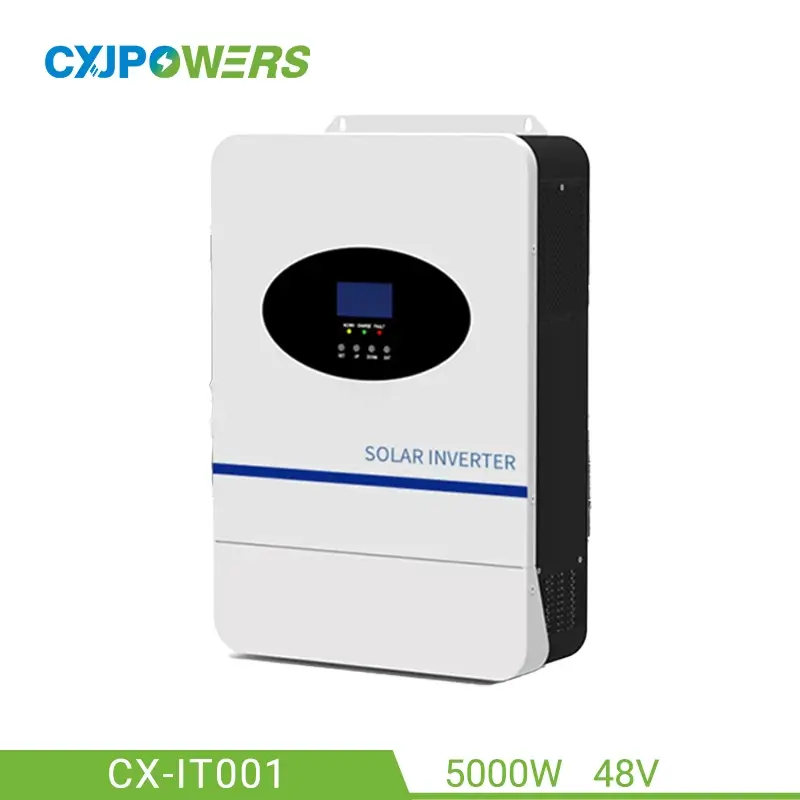

5kw 48V Hybrid inverters, high efficiency.For solar system for home, safe and stablity. Intelligent control.
Model: CX-IT001
Inverter Type: Hybrid
Rated Power: 5kW (Peak Eff. 92%)
Battery Voltage: 48VDC
AC Output: 230Vac, 50/60Hz

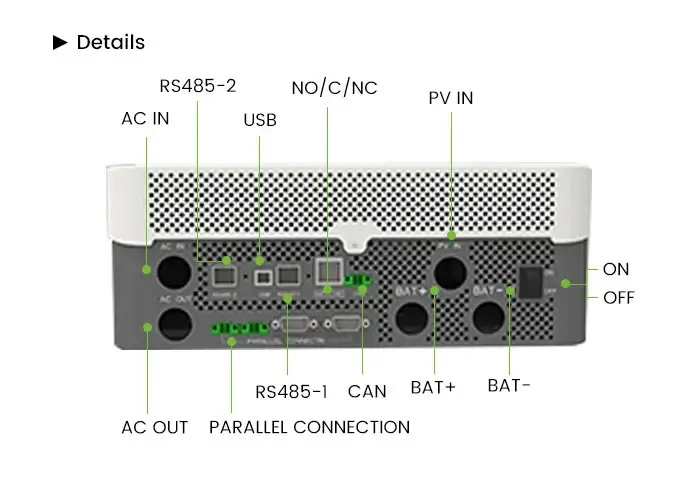

Communication: RS485,CAN,WIFI/4G/LAN,Bluetooth(optional)
Operating Temp.: 0℃-55℃
Dimension: 335×126×480mm
Weight: ≈11kg
MOQ: ≥1pcs
CXJPowers 5kw 48v hybrid inverter can not only convert the direct current (DC) of solar panels into alternating current (AC) that can be used by households, but also connect to battery energy storage systems to achieve self-generation and self-use of photovoltaic power generation, storage of surplus electricity, or peak-valley arbitrage. The wide MPPT voltage range of 120VDC~450VDC is suitable for various weather conditions. Multi-mode coordination (grid-connected/off-grid/hybrid), high conversion efficiency (＞92%) and intelligent energy scheduling.
5000W Hybrid Inverter
Green energy and save electricity costs
Adapt to various sunlight conditions.
Real-time monitoring and view the parameter
User-friendly, good use experience
Effectively extend equipment life.
Provide reliable power for various devices.
92% Peak Efficiency, low energy loss
Multiple protections to ensure safe operation.

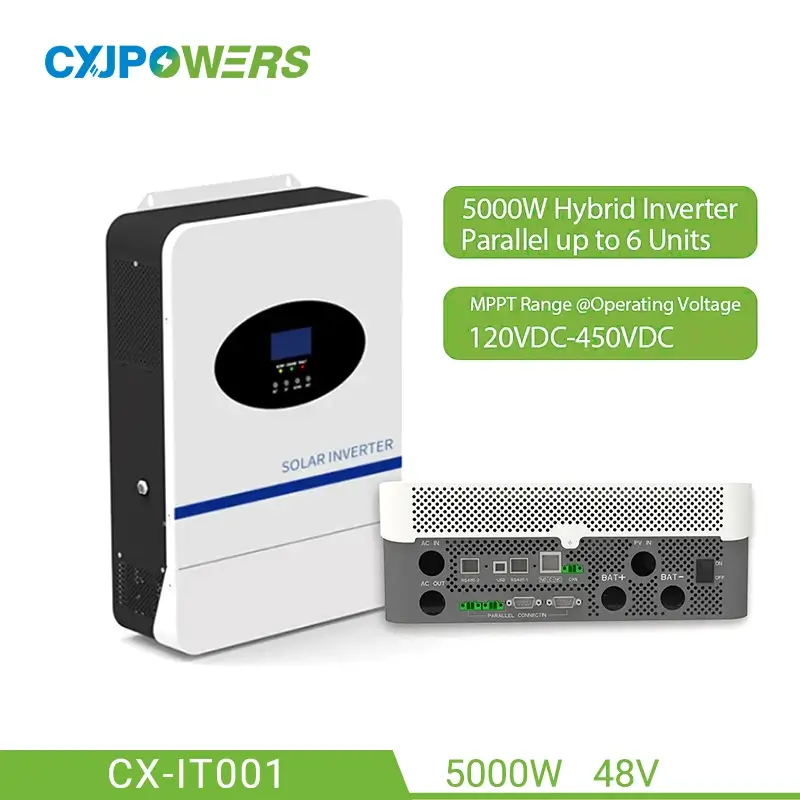

5kW 48V hybrid inverter CX-IT001 has multiple safety protections (low voltage / anti-islanding protection), supports Bluetooth/WiFi remote monitoring, uses pure sine wave output, and is compatible with all kinds of electrical appliances. Its 120V-450V wide MPPT voltage range ensures efficient operation in low-light environments, and its 92% ultra-high conversion efficiency greatly increases power generation. The silent design (<25dB) and ultra-low standby power consumption make it easier to use, making it an ideal choice for home and industrial and commercial photovoltaic systems.

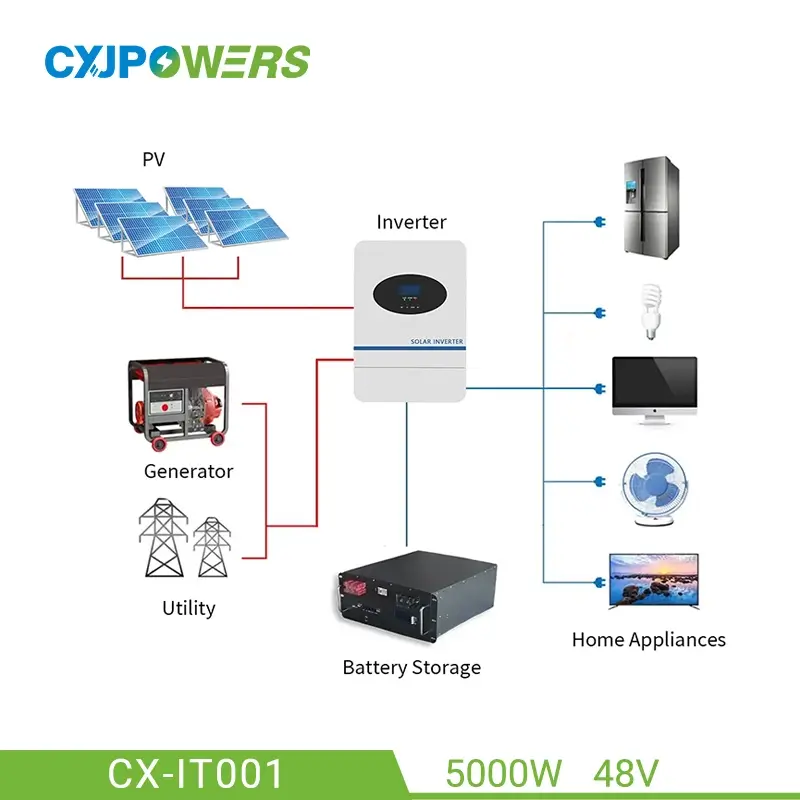

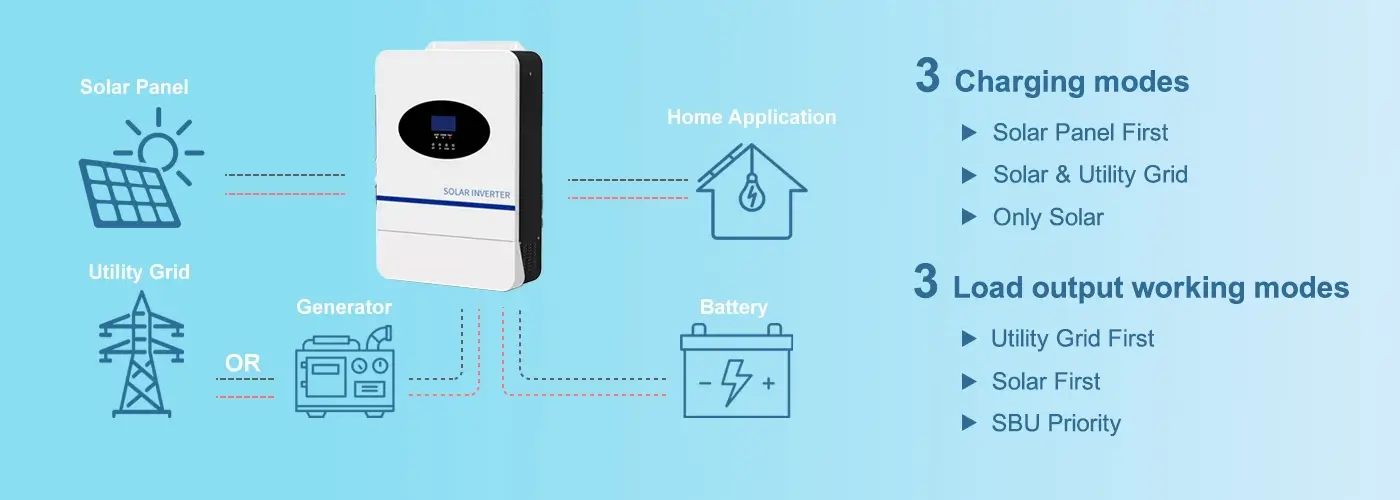

This hybrid inverter intelligently manages power flow with dual operating modes. In grid-tied mode, it prioritizes solar energy while storing excess in batteries or feeding back to the grid. When off-grid, it automatically switches to battery power for uninterrupted supply. The system offers flexible charging options (solar/grid/hybrid) with time-based optimization, and delivers pure sine wave output through three configurable modes (grid-tied/off-grid/hybrid). Featuring MPPT tracking and 92% conversion efficiency, it ensures optimal performance for 24/7 power needs.
| Item Name | 5kW 48V Hybrid Inverter for Home with Battery | ||||
| Model | CX-IT001 | Rated Power | 5000W | ||
| Inverter Type | Hybrid | Efficiency | 92% (Peak.) | ||
| Battery Type | Lithium / Lead-Acid | Communication | RS485, CAN, WIFI/4G/LAN, Bluetooth(optional) | ||
| Battery Voltage | 48V | Dimensions(LxWxH) | 420×210×640mm | ||
| MPPT Voltage Range | 120VDC-450VDC | Weight | Approx. 11kg | ||
Get A Free Quotation & More Details. Contact Us Now!
CX-IT001 48V hybrid inverter is suitable for scenarios such as household rooftop photovoltaics, industrial and commercial power stations, off-grid energy storage and emergency power supply. It is compatible with various photovoltaic modules and battery packs to provide stable and clean electricity for residences, factories, base stations, etc., helping to reduce electricity costs and improve energy self-sufficiency.
Household Power System
Car Charging Station
RV or Ship System
Base Station System
|
Wholesale 5000W 48v Hybrid Inverter for Home with Battery |
|
|
Model |
CX-IT001 |
|
Battery Parameters |
|
|
Battery Type |
Lithium / Lead-Acid |
|
Battery Voltage |
48VDC |
|
Hybrid Max. Charge Current |
100Ah |
|
Solar Input Parameters |
|
|
Max. PV Array Power |
6000W |
|
Mppt Range @ Operationg Voltage |
120VDC-450VDC |
|
Max. PV Input Current |
22A |
|
Number of independent MPP trackers/strings per MPP tracker |
1/1 |
|
Maximum PV array open circuit voltage |
500VDC |
|
Maximum solar charging current |
100A |
|
AC Output Parameters |
|
|
Rated Power |
5000VA / 5000W |
|
Parallel |
Up to 6 units |
|
AC Voltage Regulation (Battery Mode) |
230VAC 5%@50Hz/60Hz |
|
Surge Power |
10000VA |
|
Efficiency (Peak) |
92% |
|
Wave Form |
Pure Sine Wave |
|
Transfer Time |
Typical value 10ms, maximum value 20ms |
|
AC Charger Parameters |
|
|
Charging Current |
60A |
|
AC Input Voltage |
230Vac |
|
Selectable Voltage Range |
170-280 Vac (for PC); 90-280 Vac |
|
Frequency Range |
50Hz/60Hz (Auto-sensing) |
|
Physical Paremeters |
|
|
Protection Level |
IP20 |
|

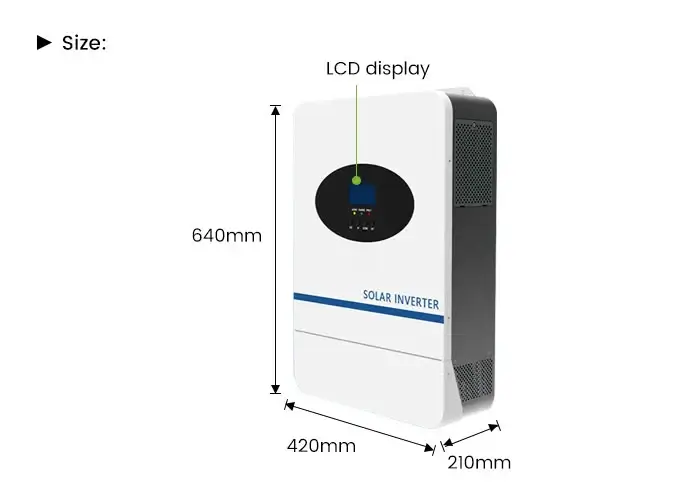

Demensions (W×H×L) |
420×210×640mm |
|
Net Weight |
11Kg |
|
Operating Environment Parameters |
|
|
Certification |
-20℃~60℃ |
|
Humidity |
5%/95% relative humidity (non-condensing) |
|
EMC certification Level |
EN61000, C2 |
|
Altitude |
＜2000m |
|
Operating Temperature |
0℃~55℃ |
|
Storage Temperature |
-15℃~60℃ |
|
Display and Communication |
|
|
Display |
LCD |
|
Communication |
RS485, CAN, WIFI/4G/LAN, Bluetooth (optiponal) |
An inverter converts DC (direct current) electricity from solar panels or batteries into AC (alternating current) for household or grid use.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Match the inverter’s wattage to your total load requirements, plus a 20-30% buffer for surge power (e.g., 3000W for a 2400W load).
