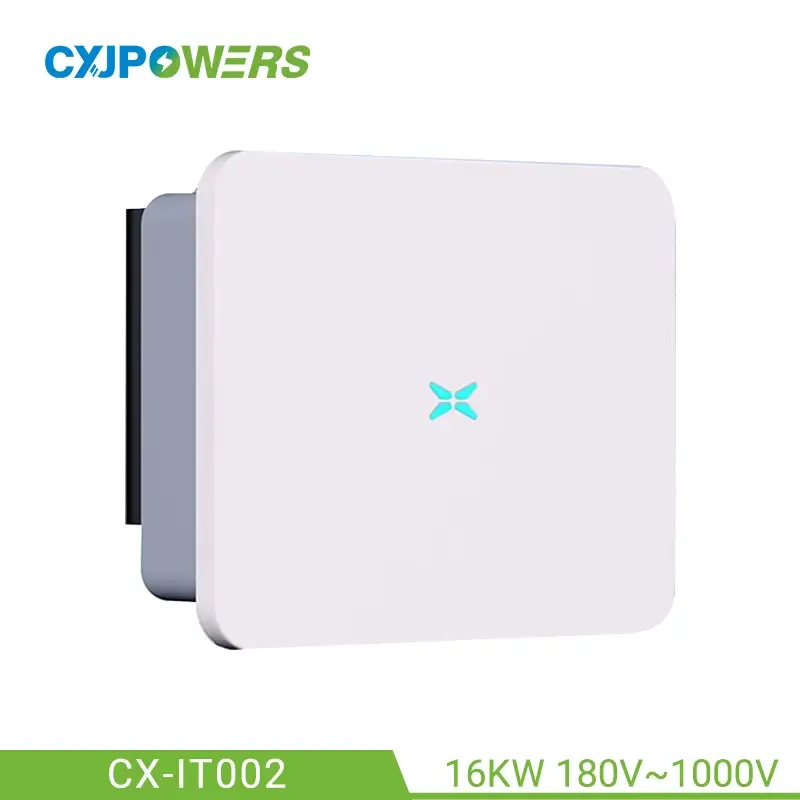

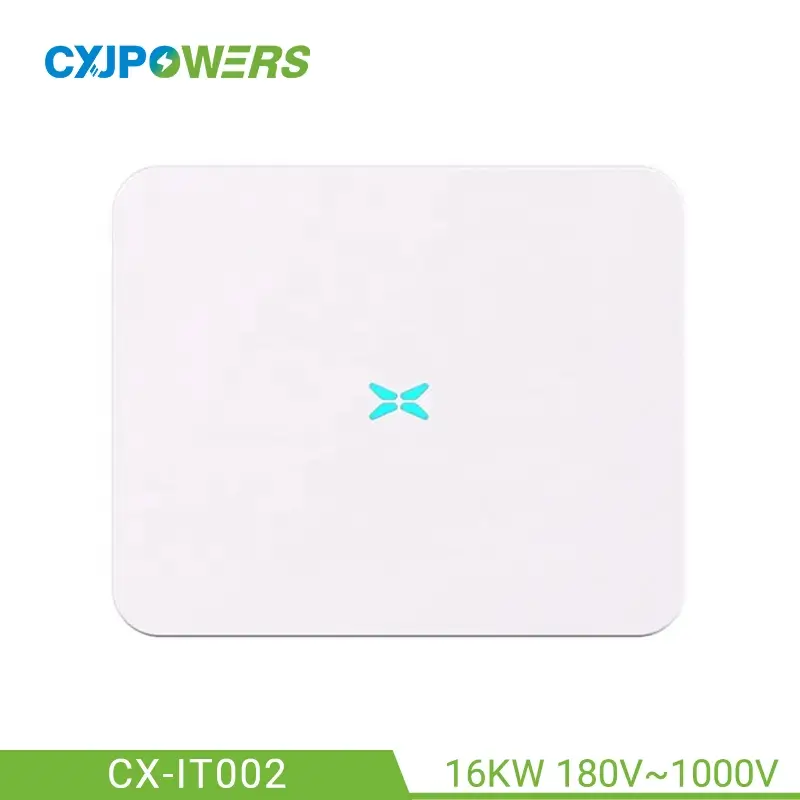

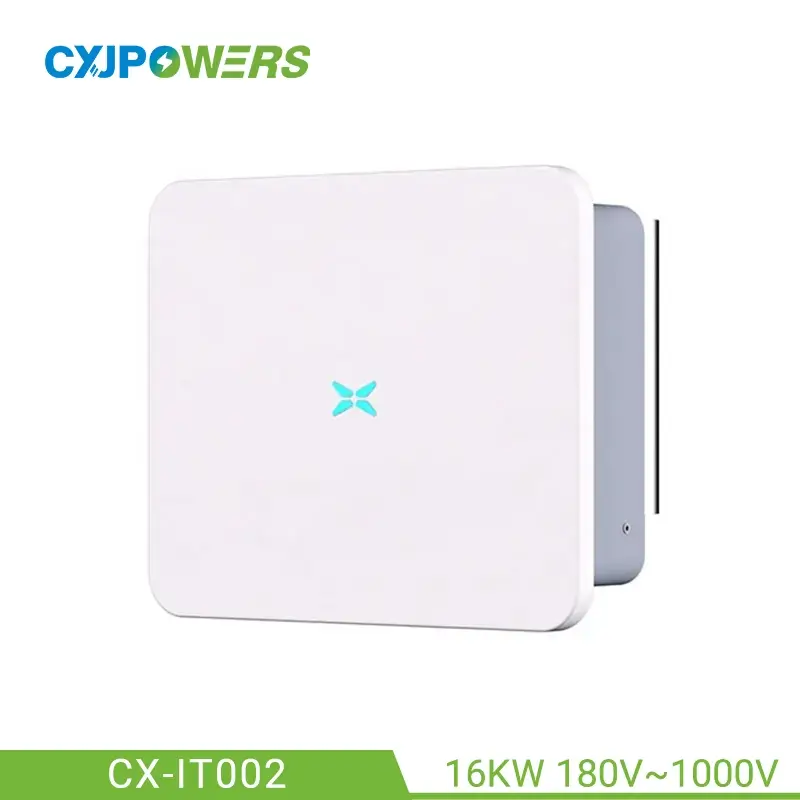

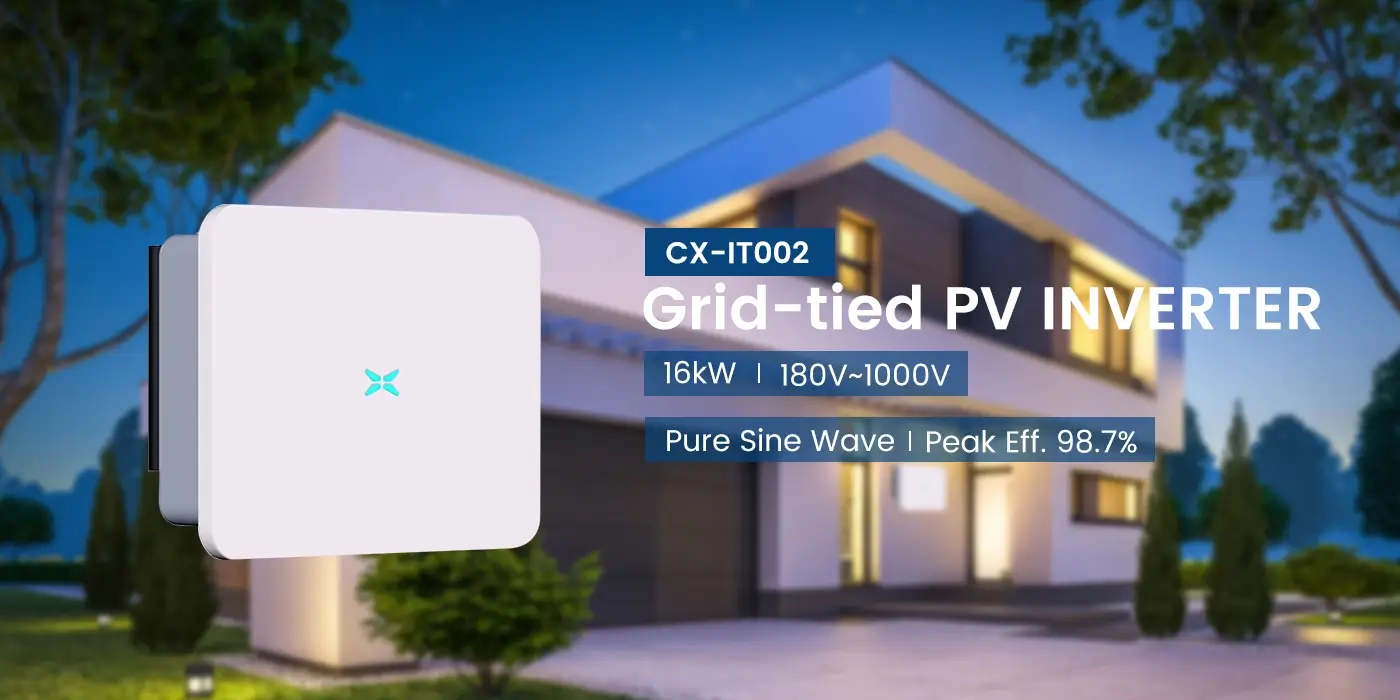

16kW Grid-tied inverters, high efficiency.For solar system for home, safe and stablity. Intelligent control.
Model: CX-IT002
Inverter Type: Grid-tied
Rated Power: 16kW (Peak Eff. 98.7%)
MPPT Input Voltage: 180V~1000V
AC Output: 230Vac/400Vac, 50/60Hz
Communication: RS485,WIFI/GPRS/Ethernet(optional)
Operating Temp.: -30℃-60℃

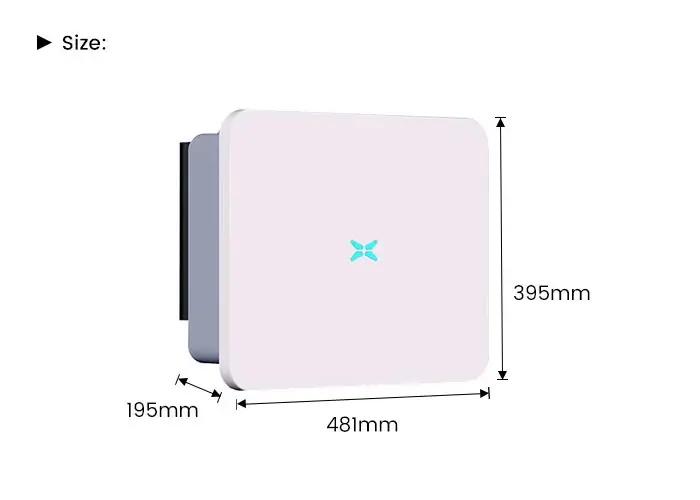

Dimension: 481×395×195mm
Weight: ≈13.5kg
MOQ: ≥1pcs
CXJPowers 16kW grid-tied inverter system for home features a wide 180-1000V MPPT range and 98.7% peak efficiency, maximizing solar harvest in all conditions. Its advanced tracking optimizes performance despite shading or panel mismatches. The compact design reduces installation costs while robust construction ensures reliable operation from -30°C to 60°C. With smart monitoring and full grid compliance, it delivers efficient, durable power for commercial and residential systems.
16KW Grid-Tied Inverter
Green energy and save electricity costs
Adapt to various sunlight conditions.
Real-time monitoring and view the parameter
User-friendly, good use experience
Effectively extend equipment life.
Provide reliable power for various devices.
98.7% Peak Efficiency, low energy loss
Multiple protections to ensure safe operation.
16kW grid-tied inverter system for home CX-IT002 has multiple safety protections (low voltage / short circult protection), supports Bluetooth/WiFi remote monitoring, pure sine wave output is compatible with all kinds of electrical appliances. Its 180V-1000V wide MPPT voltage range ensures efficient operation in low-light environments, and its 98.7% ultra-high conversion efficiency greatly increases power generation. The silent design (<25dB) and ultra-low standby power consumption make it easier to use, making it an ideal choice for home and industrial and commercial photovoltaic systems.
A grid-tied inverter converts DC power (from solar panels) into AC power synchronized with the utility grid. It tracks maximum power point (MPPT) for optimal energy harvest, adjusts voltage/frequency to match grid standards, and ensures safety via anti-islanding protection. When grid power fails, it automatically disconnects. Advanced models enable smart features like feed-in tariffs and remote monitoring
| Item Name | 16kw Inverter System for Home Grid-tied | ||||
| Model | CX-IT002 | MPPT Voltage Range | 180V-1000V | ||
| Inverter Type | Grid-tied | Number of MPPT | 2 | ||
| Max Input Power | 16kW | Efficiency | 98.7% (Peak.) / 98.5% (European Efficiency) | ||
| Max Input Voltage | 1100V | Communication | RS485, WIFI/GPRS/Ethernet/Bluetooth(optional) | ||
| Start Voltage | 160V | Dimensions(LxWxH) | 481×395×195mm | ||
| Rated Input Voltage | 600V | Weight | Approx. 13.5kg | ||
Get A Free Quotation & More Details. Contact Us Now!

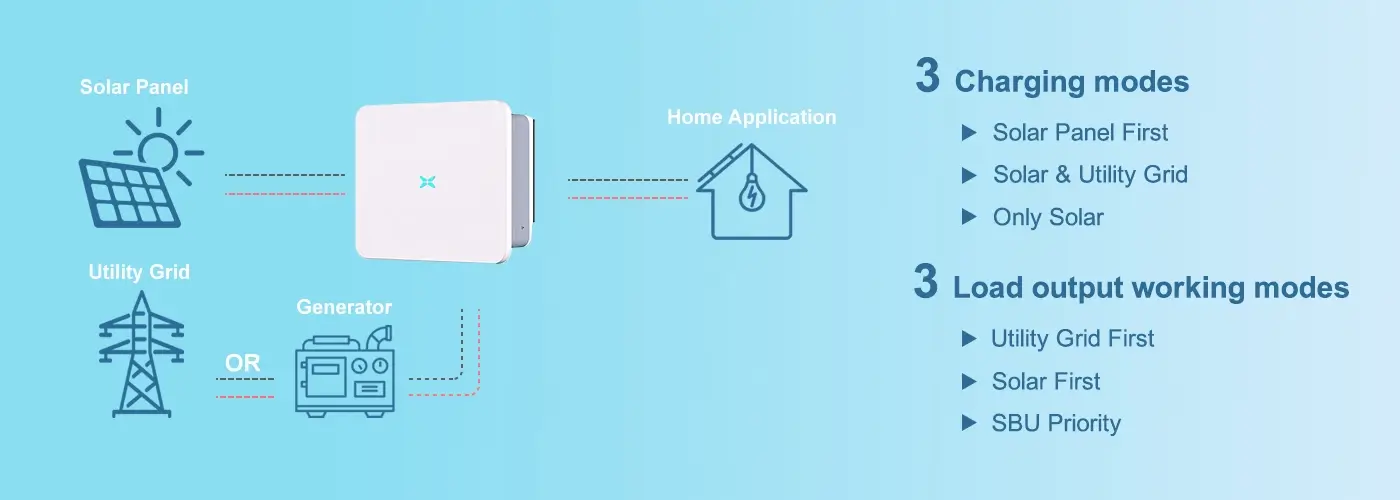

Grid-tied inverters CX-IT002 are widely used in solar PV systems for homes, businesses, and industrial plants, feeding clean energy into the utility grid. They enable net metering, allowing users to earn credits for excess power. Other applications include commercial solar farms, hybrid renewable systems. Their grid-synchronization capability ensures efficient energy distribution while supporting sustainable power integration.
Household Power System
Solar Farm
Profit from delivering electricity to the grid
Optimizing energy distribution
|
Wholesale 16kW Grid-tied Solar Inverter System for Home |
|
|
Model |
CX-IT002 |
|
Input (DC) Parameters |
|
|
Max.Input Power |
16kW |
|
Max.Input Voltage |
1100V |
|
Start Voltage |
160V |
|
Rated input Voltage |
600V |
|
Full-load MPP Voltage Range |
450V~850V |
|
MPPT Voltage Range |
180V~1000V |
|
Number of MPP Trackers |
2 |
|
Number of String per MPPT |
1/1 |
|
Max.Current per MPPT |
14A/14A |
|
Max.Short Circuit Current per MPPT |
18A/18A |
|
Output (AC) Parameters |
|
|
Max.Output Current |
15.9A |
|
Rated Output Power |
10kW |
|
Max.Output Power |
11kVA |
|
Rated Grid Frequency |
50Hz/60Hz |
|
Rated Grid Voltage |
230Vac/400Vac,3L/N/PE |
|
Power Factor |
>0.99(0.8 leading~0.8 lagging) |
|
THDi |
<3%(Rated Power) |
|
Efficiency |
|
|
Max.Efficiency |
98.7% |
|
European Efficiency |
98.5% |
|
MPPT Efficiency |
99.90% |
|
Protection |
|
|
DC Reverse Polarity Protection |
Yes |
|
Anti-islanding Protection |
Yes |
|
AC short Circuit Protection |
Yes |
|
Residual Current Monitoring Unit |
Yes |
|
Insulation Resistance Monitoring |
Yes |
|
Ground Fault Monitoring |
Yes |
|
Grid Monitoring |
Yes |
|
Surge Protection |
Type Ⅱ |
|
AFCI Protection |
Optional |
|
Communication |
|
|
Display |
LED/LCD /WiFi+App |
|
Communication |
Standard:RS485 Optional:WiFi/GPRS/Ethernet |
|
Standard Compliance |
|
|
Certification |
EC/EN 62109-1/2,IEC/EN 61000-6-1/3,IEC61683,IEC60068,IEC61727/IEC62116, EN50549,CEIO-21,C10/C11,VDE 4105,VDE 0124,G98/G99,RD244,UNE217001, UNE217002,NC RfG,TOR Erzeuger,AS4777,ABNT,NB/T 32004 |
|
EMC |
IEC 62109-1:2010, IEC 62109-2:2011, EN 61000-6-2:2005, EN 61000-6-3:2007/A1:2011 |
|
General Data |
|
|
Dimensions(WxHxD) |
481x395x195 mm |
|
Weight |
13.5KG |
|
Display |
-30°C~+60°C |
|
Cooling Method |
Natural |
|
Protection Degree |
IP66 |
|
Max.Operating Altitude |
4000m |
|
Relative Humidity |
0～100% |
|
Topology |
Transformerless |
|
Night Power Consumption |
<1W |
An inverter converts DC (direct current) electricity from solar panels or batteries into AC (alternating current) for household or grid use.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Grid-tied inverters can operate without batteries, feeding excess solar power directly to the grid. Off-grid systems require batteries.
