5kW off-grid inverters, high efficiency.For solar system for home, safe and stablity. Intelligent control.

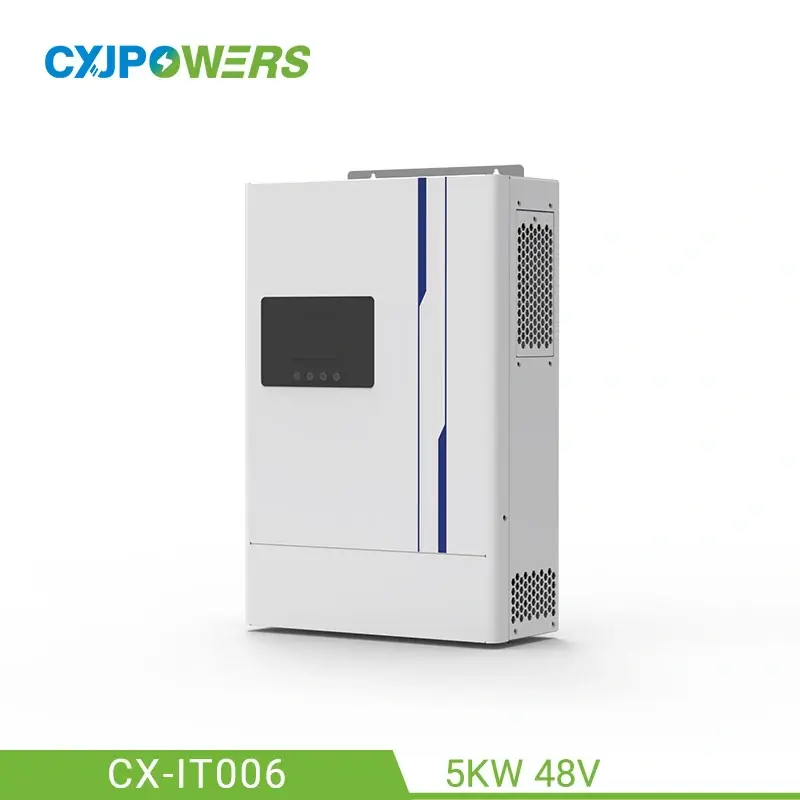

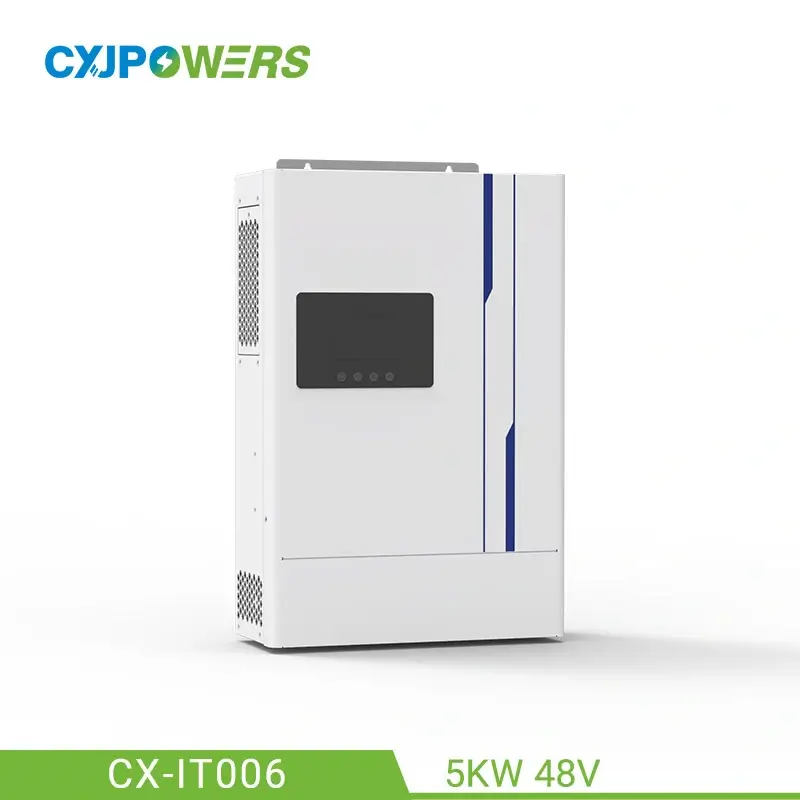

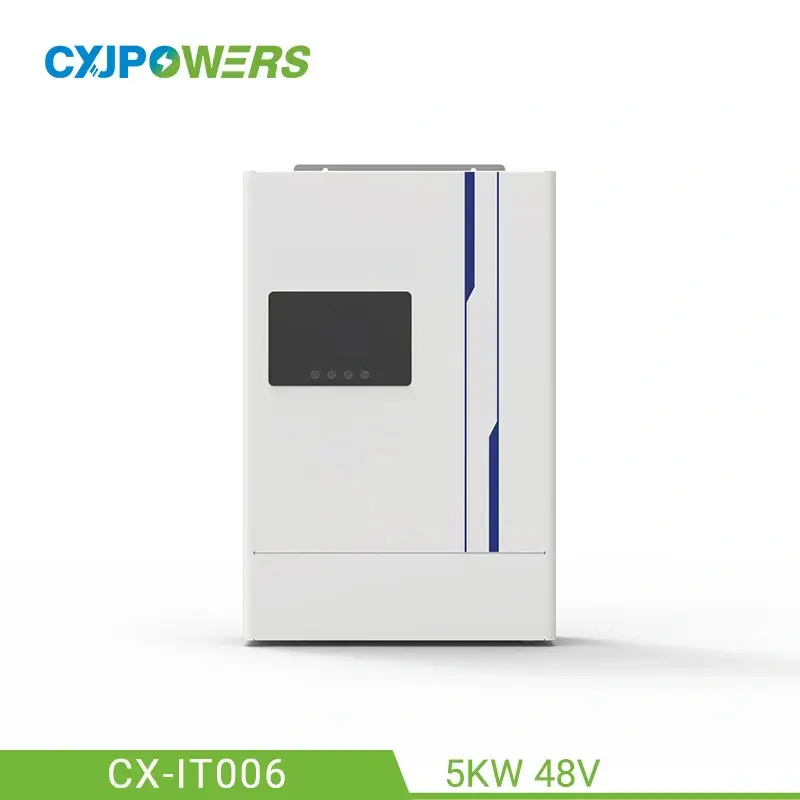

Model: CX-IT006
Inverter Type: Off-grid
Rated Power: 5kW (Peak Eff. 96.5%)
Battery Voltage: 48V
AC Output: 230Vac, 50Hz/60Hz
Communication: RS485 / RS232 / USB / Dry Contact
Operating Temp.: -10℃-50℃
Dimension: 490×395×200mm
Weight: ≈12.5kg
MOQ: ≥1pcs
CXJPowers 5kw off-grid single phase inverter efficiently converts solar panel DC power into usable AC power for complete energy independence. With built-in MPPT solar charging (120V–450V wide voltage range), it ensures optimal energy harvest in all weather conditions. Integrated battery support enables reliable energy storage for 24/7 power supply, ideal for remote locations or backup systems. Off grid inverter manufacturers CXJPowers committed to providing you with the best quality inverters, there are more models to offer!
5000W Off-grid Inverter
Green energy and save electricity costs
Adapt to various sunlight conditions.
Real-time monitoring and view the parameter
User-friendly, good use experience
Effectively extend equipment life.
Provide reliable power for various devices.
96.5% Peak Efficiency, low energy loss
Multiple protections to ensure safe operation.
5kW off-grid single phase inverter CX-IT006 has multiple safety protections (low voltage / anti-islanding protection), supports remote monitoring, uses pure sine wave output, and is compatible with all kinds of electrical appliances. Its 120V-450V wide MPPT voltage range ensures efficient operation in low-light environments. The silent design (<35dB) and ultra-low standby power consumption make it easier to use, >10ms UPS switching time, making it an ideal choice for home and industrial and commercial photovoltaic systems.
An off-grid single phase inverter converts DC power (from batteries or solar panels) into AC power (230V/120V) for standalone use. It uses an H-bridge circuit and PWM switching to generate a modified or pure sine wave, with filters smoothing the output. Key features include battery charging, voltage regulation, and protection circuits, making it ideal for solar systems, cabins, and backup power.
| Item Name | 5kW Off-grid Single Phase Inverter High Efficiency | ||||
| Model | CX-IT006 | Rated Power | 5000W | ||
| Inverter Type | Hybrid | Efficiency | 96.5% (Peak.) | ||
| Battery Type | Lithium / Lead-Acid | Communication | RS485 / RS232 / USB / Dry Contact | ||

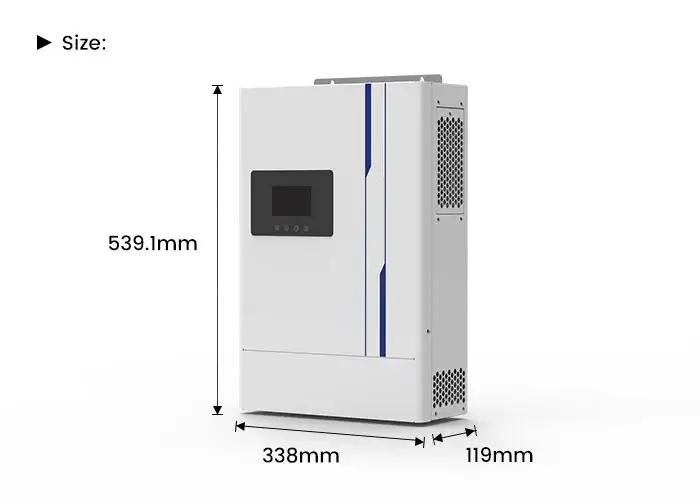

| Battery Voltage | 48V | Dimensions(LxWxH) | 119×338×539.1mm | ||
| MPPT Voltage Range | 120VDC-450VDC | Weight | Approx. 12.5kg | ||
Get A Free Quotation & More Details. Contact Us Now!

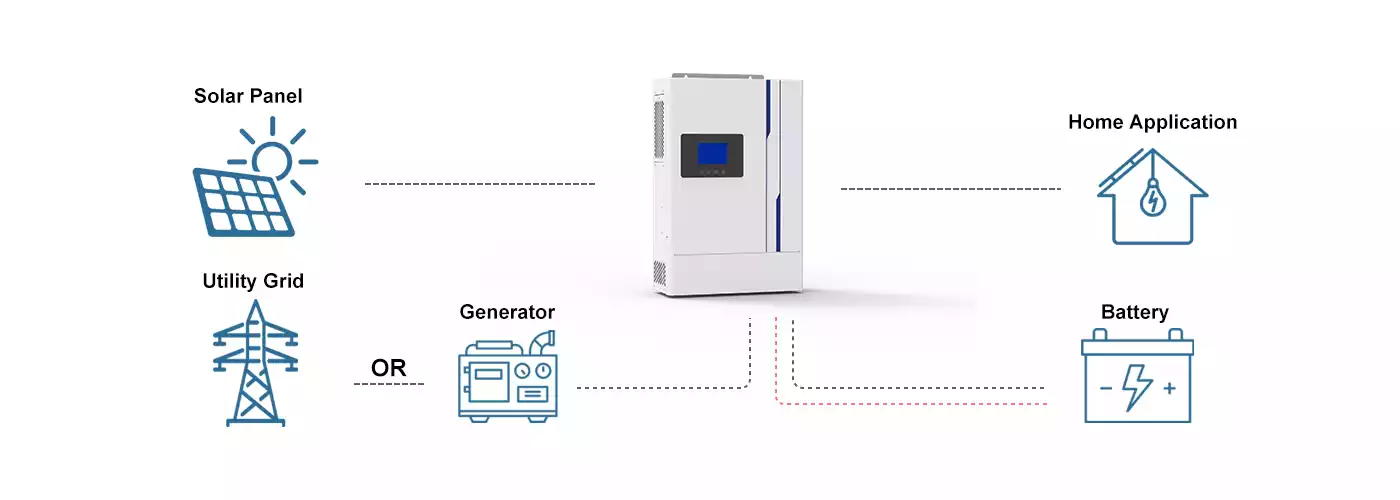

CX-IT006 off-grid single phase inverter is suitable for scenarios such as household rooftop photovoltaics, industrial and commercial power stations, off-grid energy storage and emergency power supply. It is compatible with various photovoltaic modules and battery packs to provide stable and clean electricity for residences, factories, base stations, etc., helping to reduce electricity costs and improve energy self-sufficiency.
Household Power System
Off-grid Monitoring Power System
RV or Ship System
Base Station System
|
Wholesale Off-grid Single Phase Inverter with High Efficiency |
|
|
Model |
CX-IT006 |
|
PV Input |
|
|
PV Maximum Input Power |
6500W |
|
Max. PV Open Circuit Voltage |
500VDC |
|
MPPT Range Operating Voltage |
120~450VDC |
|
Max. Solar Input Current |
18A |
|
Battery Specifications |
|
|
Battery Type |
Lithium and Lead-acid |
|
Nominal Battery voltage |
48V（4*12V） |
|
AC Input |
|
|
Nominal voltage |
208 / 220 / 230 / 240; L + N + PE |
|
Voltage Range |
90~280±3 (normal mode); 170~280±3 (UPS mode) |
|
Frequency |
50 / 60Hz (Auto Adaptive) |
|
AC Output |
|
|
Rated Capacity |
6000VA / 5000W |
|
Second Output Capacity |
4150VA / 4150W |
|
Surege Power |
15000VA |
|
Parallel |
9 Unit (1P & 3P) |
|
Waveform |
Pure Sine Wave |
|
Nominal Voltage |
208 / 220 / 230 / 240 VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Nominal Frequency |
50 / 60Hz |
|
Feed-in Grid Frequency Range |
49~51Hz±0.1% / 59~61±0.1% |
|
Transfer Time |
Transfer Time 10ms UPS mode 10ms Appliance mode |
|
Peak Efficiency (PV to INV) |
96.50% |
|
Peak Efficiency (Battery to INV) |
93.50% |
|
Overload Protection |
1min@102%< Load ≤120% 10s@110%150% 3s@130%< Load ≤150% 200ms@Load>150% |
|
Admissible Power Factor |
-0.8~+0.8 |
|
Charger Specifications (Solar Charger & AC Charger) |
|
|
Charging Voltage |
FV MODE: 54V Settable: 53.2~55.6V CV MODE: 56.4V Settable: 56~58V |
|
Battery Over Voltage |
61V |
|
Charging Current |
2~80A |
|
Max.AC Charge Current |
80A |
|
Max PV Charge Current |
80A |
|
Max. Charge Current (PV+AC) |
80A |
|
General Data |
|
|
Built-in Transfer |
Yes |
|
Built-in Power Booster |
Yes |
|
Dimensions, DxWxH (mm) |
119x338x539.1 mm |
|
Net Weight (Kg) |
12.5 |
|
Communication Interface |
RS485 / RS232 / USB / Dry Contact |
|
Environment |
|
|
Ingress Protection |
IP21 |
|
Operating Temperature Range |
-10 ℃~ 50 ℃ |
|
Storage Temperature |
-15 ℃~ 60 ℃ |
|
Humidity |
5% ~ 95% (Non-condensing) |
An inverter converts DC (direct current) electricity from solar panels or batteries into AC (alternating current) for household or grid use.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Match the inverter's wattage to your total load requirements, plus a 20-30% buffer for surge power (e.g., 3000W for a 2400W load).
