CXJPowers · Reliable Energy Storage Battery Supply Manufacturer in China
Applied to RVs, UPS, golf carts, boats, forklifts, electric power & solar storage systems etc.

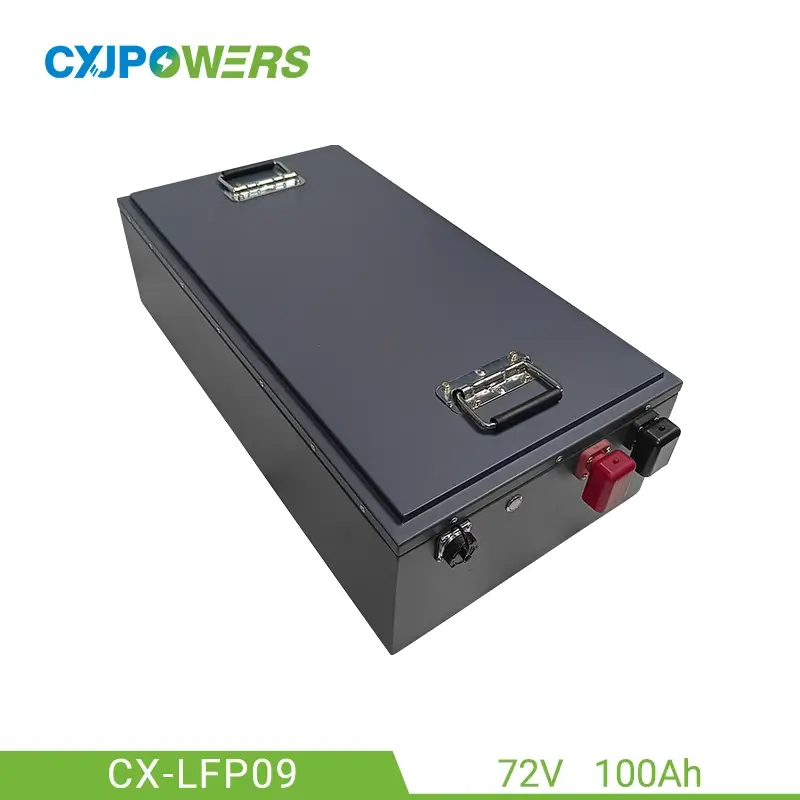

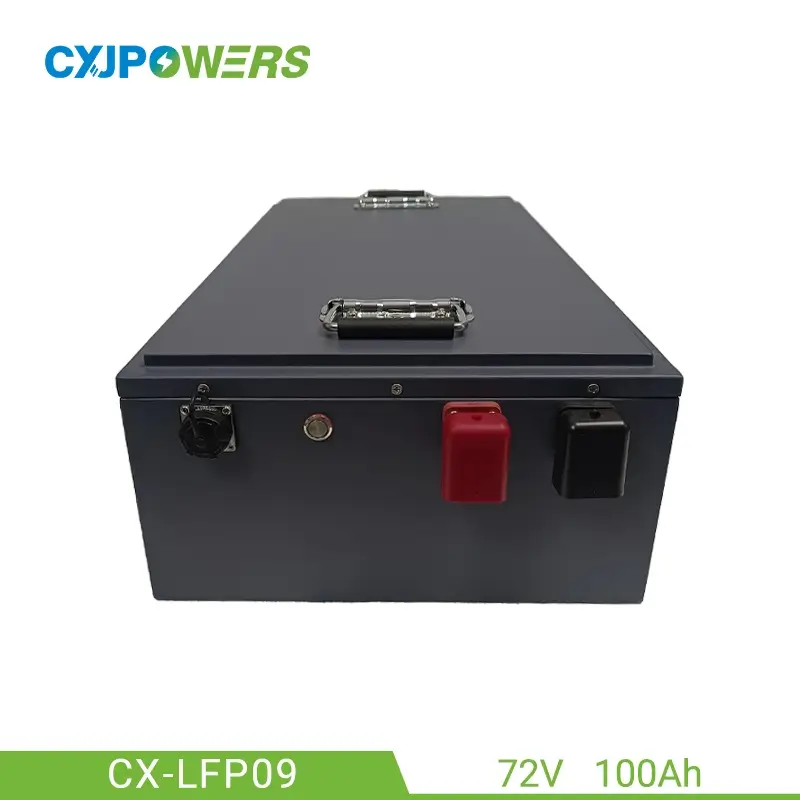

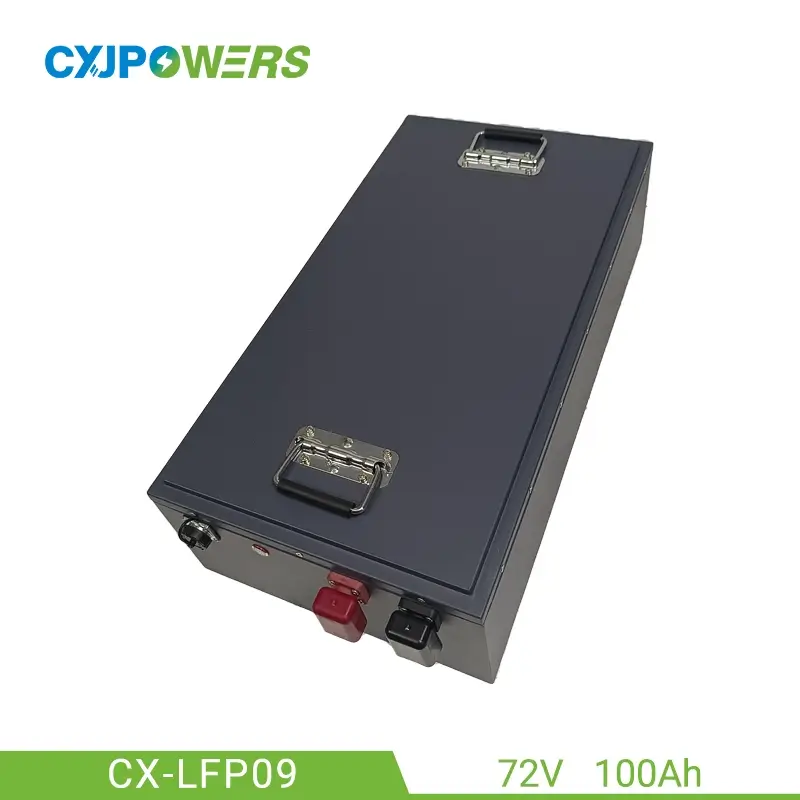

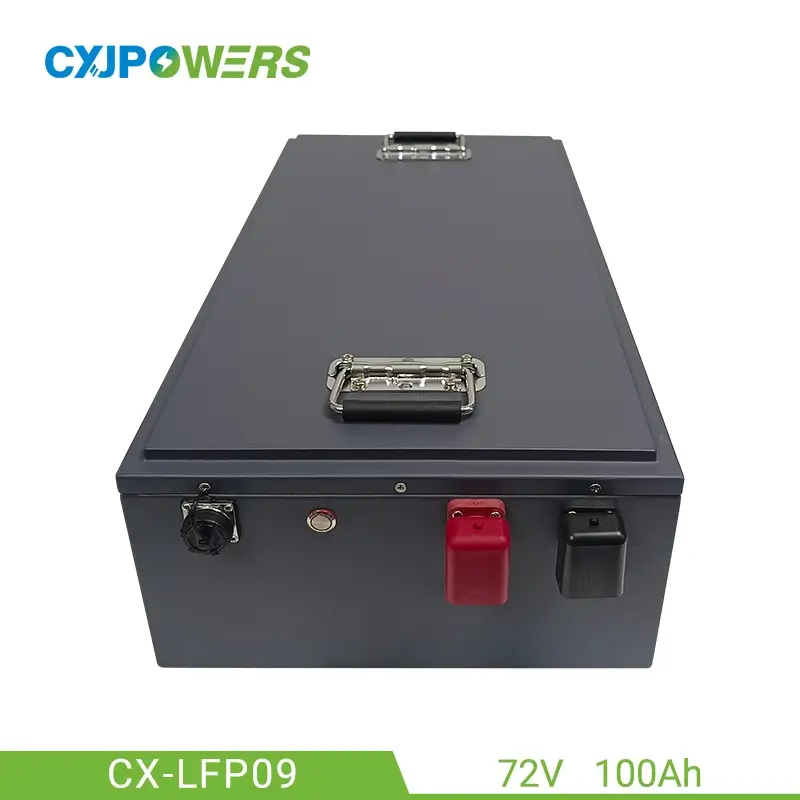

Model: CX-LFP09
Rated energy: 7.68kWh
Rated voltage: 76.8V
Rated capacity: 100Ah
Battery type: LiFePO4 battery
Cycle life: > 6000 times
Voltage range: 57.5V～84V
Max charge current: 50A
Max cont discharge current: 150A(Peak 450A)
Combination: 24S1P

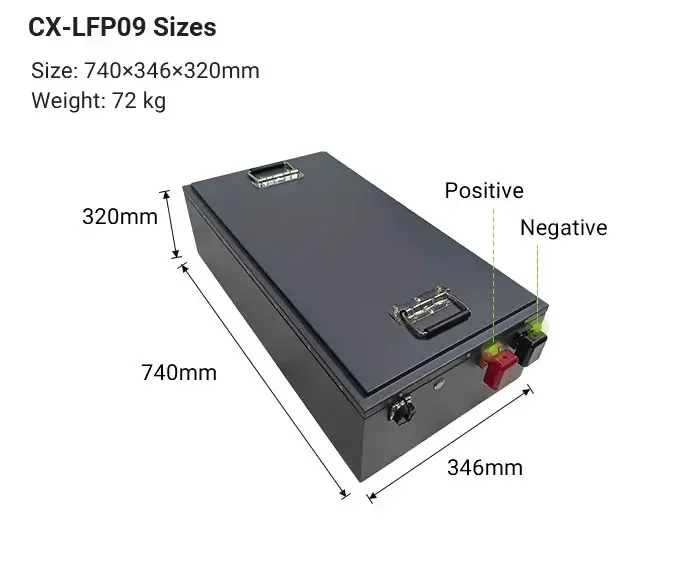

Dimension(L×W×H): 740×320×346mm
Weight: ≈72 kg
MOQ: ≥ 2pcs
CXJPowers 72V 100Ah LiFePO4 battery is manufactured with advanced lithium iron phosphate (LiFePO4) technology, which provides excellent energy density, safety and reliability. With a total storage capacity of 7.86kWh, it ensures extended runtime and stable power output for your devices. High-performance, long-lasting power solution designed for golf carts and electric vehicles.
72V LiFePO4 Battery Pack
7.68KWh A-grade LiFePO4 battery.
Multiple protections & 100% safety.
State of charge, Depth of discharge.
6000+ long life cycle(80% DOD).
60% lighter than lead-acid batteries.
3x faster than lead-acid batteries.
No heavy metals, no pollution.
Powers 99% of all appliances.
CXJPowers 72V LifePO4 battery has a built-in smart battery management system(BMS) to prevent batteries from overcharging, over-discharging, over-current and short circuit. And it has high sealing performance and can be used in various harsh environments.
Built-in Smart BMS, High Safety & Mutilple Protection
Self-Heating Function, Can Work in -10℃ Outdoor Environment
| Item Name | Golf Cart LiFePO4 Battery 72V 100Ah | ||||
| Model | CX-LFP09 | Rated Energy | 7.68KWh | ||
| Battery Type | LiFePO4 cell | Max Continuous Charging Current | 50A | ||
| Cycle Life | >6000 times | Max Continuous Discharging Current | 150A | ||
| Voltage Range | DC 57.5~84V | Dimensions(LxWxH) | 740×320×346mm | ||
| Bluetooth & Display | Optional | Weight | Approx. 72kg | ||
Get A Free Quotation & More Details. Contact Us Now!

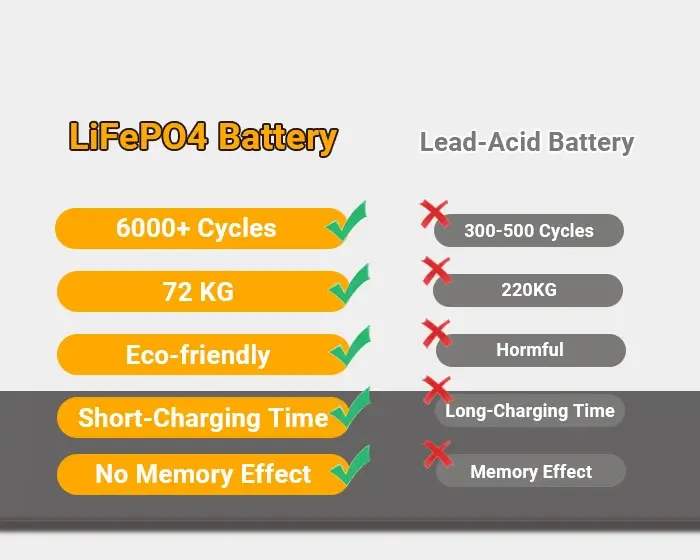

LiFePO4 batteries have a service life more than 5 times that of standard lead-acid batteries and are 60% lighter. It can directly replace lead-acid batteries.

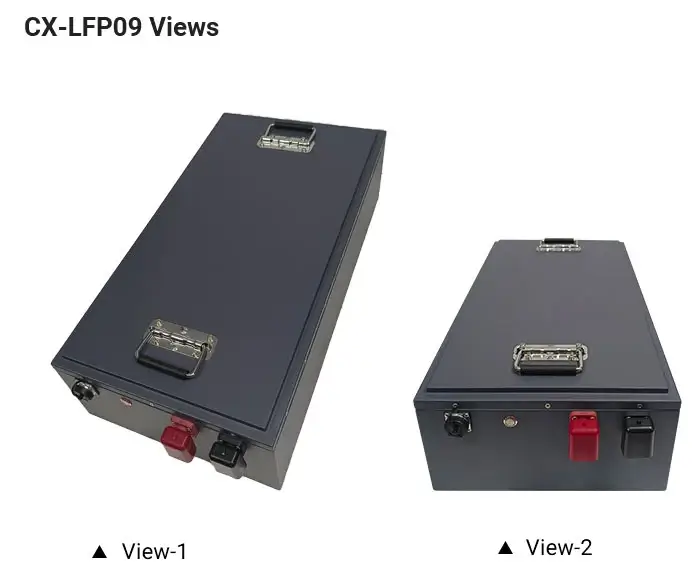

CX-LFP09 is compact, high-performance 72V 100Ah LiFePO4 battery that delivers 7.68kWh of reliable energy. It suitable for off-grid living, RVS, golf cart and lawn mower, etc. This CXJPowers LiFePO4 battery is compatible with the major brands of golf cart controllers.
Home backup power
Folklifts

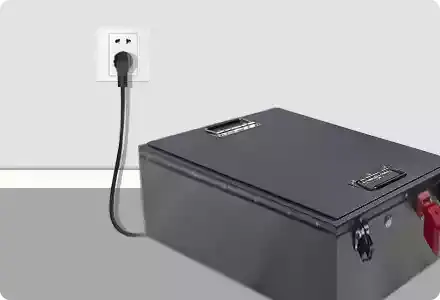

3 methods to charge LiFePO4 battery: solar energy, charging with a charger connected to the grid, and charging with a generator. Lithium batteries can be charged safely and efficiently, maximizing their performance and lifespan. They are very suitable for outdoor and off-grid use.
|
Golf Cart LiFePO4 Battery 72V 100Ah |
|
|
Model |
CX-LFP09 |
|
Battery Parameters |
|
|
Voltage |
76.8V |
|
Capacity |
100Ah |
|
Life Cycle |
＞6000 cycles |
|
Battery Working Voltage |
57.5V~84V |
|
Electrical Parameters |
|
|
Rated Energy |
7.68kWh |
|
Standard Charging Current |
≤50A |
|
Standard Discharging Current |
≤150A |
|
Peak Current |
450A |
|
Product Parameters |
|
|
Dimension (LxWxH) |
740×320×346mm |
|
Net Weight |
72KG |
|
IP Grade |
IP65 |
|
Operating Temperature Range |
Charging：0~50℃ Discharging：-10~55℃ |
|
Cooling Mode |
Natural Cooling |
|
Operating Humidity Range |
0~95% (NO Condensation) |
|
Display Screen |
Optional |
This battery kit is compatible with most 48V golf cart models of Club Car, EZGO & Yamaha.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
It is not recommended to fully discharge LiFePO4 batteries. Although these batteries can handle deep discharges better than lead-acid batteries, frequently discharging them to 0% can reduce their lifespan and performance. It's best to recharge the battery before it drops below a very low level, ideally at 20% or higher.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
