64kW Grid-tied inverters, high efficiency.For solar system for home, safe and stablity. Intelligent control.

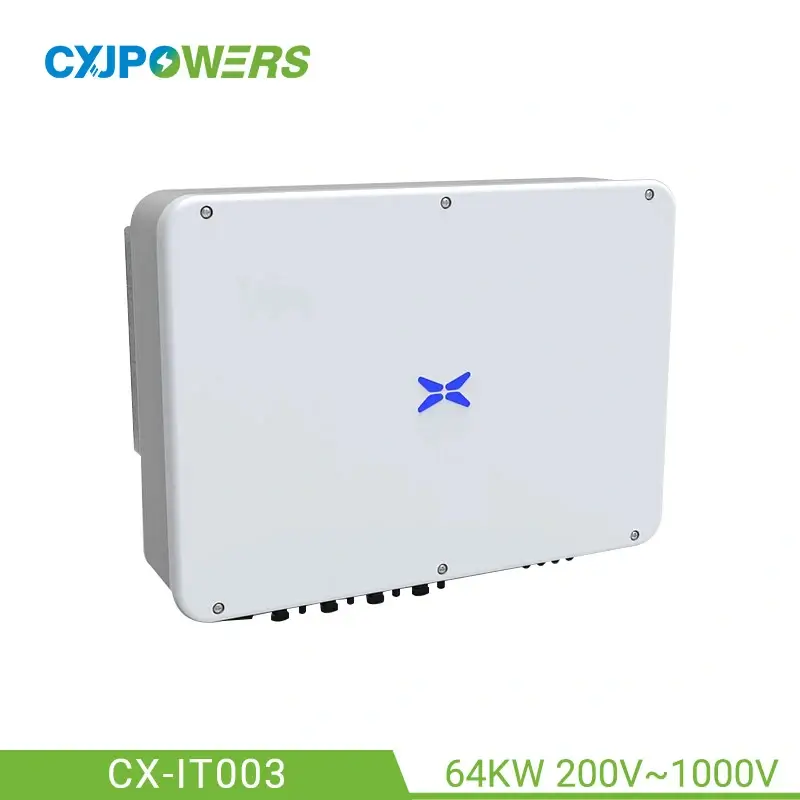

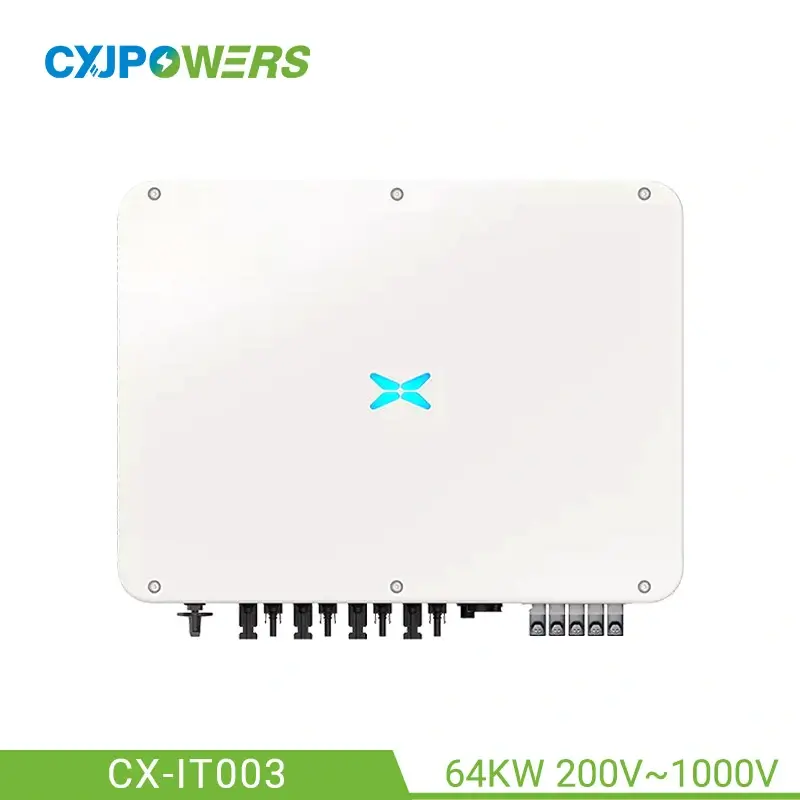

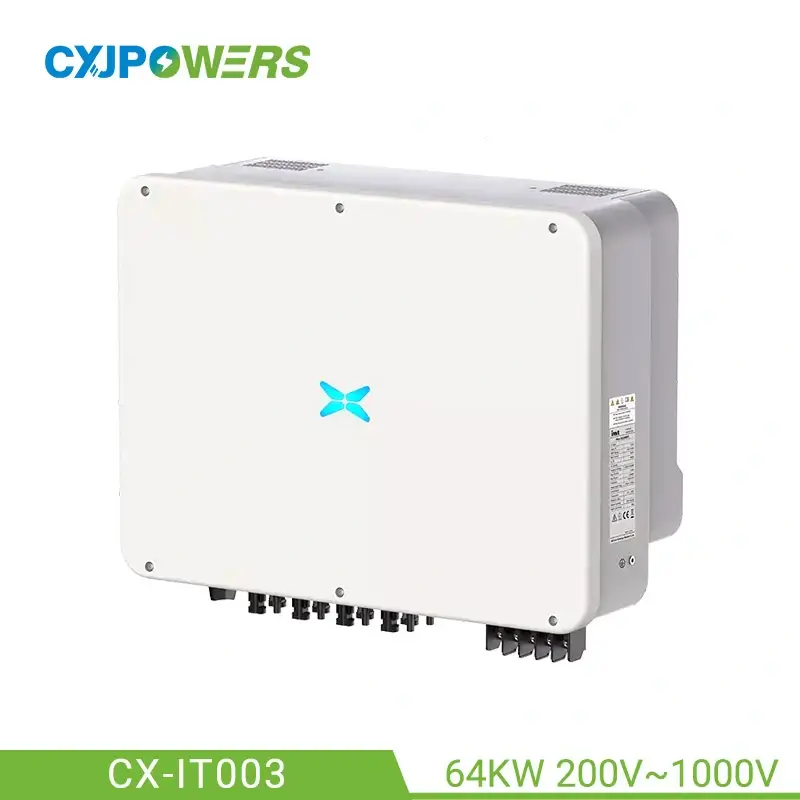

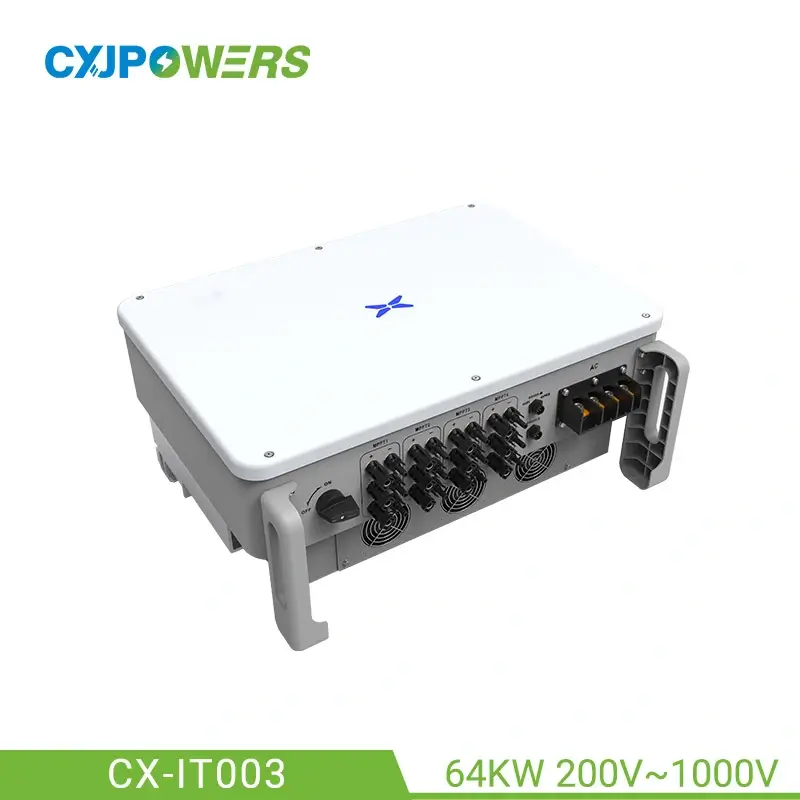

Model: CX-IT003
Inverter Type: Grid-tied
Rated Power: 64kW (Peak Eff. 98.6%)
MPPT Input Voltage: 200V~1000V
AC Output: 230Vac/400Vac, 50/60Hz
Communication: RS485/USB,WIFI/GPRS/Ethernet(optional)
Operating Temp.: -30℃-60℃

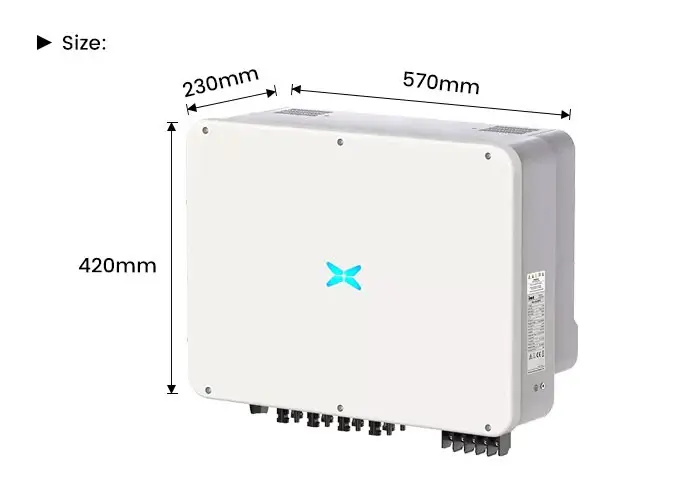

Dimension: 570×420×230mm
Weight: ≈32kg
MOQ: ≥1pcs
CXJPowers 64kW inverter for home backup features a wide 200-1000V MPPT range and 98.6% peak efficiency, this inverter maximizes solar energy harvest in all conditions. Its advanced MPPT algorithm ensures optimal performance, even under shading or panel mismatch. The compact and robust design reduces installation costs while supporting reliable operation in extreme temperatures (-30°C to 60°C). With smart monitoring and full grid compliance, it delivers high-efficiency, long-lasting power for both residential and commercial solar systems.
64KW Grid-Tied Inverter
Green energy and save electricity costs
Adapt to various sunlight conditions.
Real-time monitoring and view the parameter
User-friendly, good use experience
Effectively extend equipment life.
Provide reliable power for various devices.
98.6% Peak Efficiency, low energy loss
Multiple protections to ensure safe operation.
64kW grid-tied inverter for home backup CX-IT003 has multiple safety protections (low voltage / short circult protection), supports Bluetooth/WiFi remote monitoring, pure sine wave output is compatible with all kinds of electrical appliances. Its 200V-1000V wide MPPT voltage range ensures efficient operation in low-light environments, and its 98.6% ultra-high conversion efficiency greatly increases power generation. The silent design (<25dB) and ultra-low standby power consumption make it easier to use, making it an ideal choice for home and industrial and commercial photovoltaic systems.

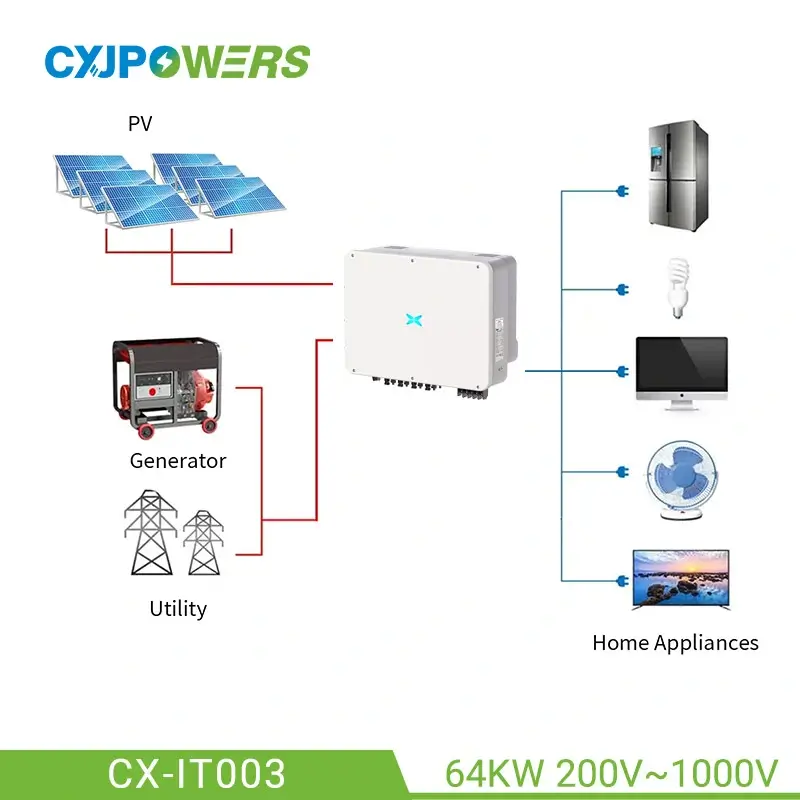

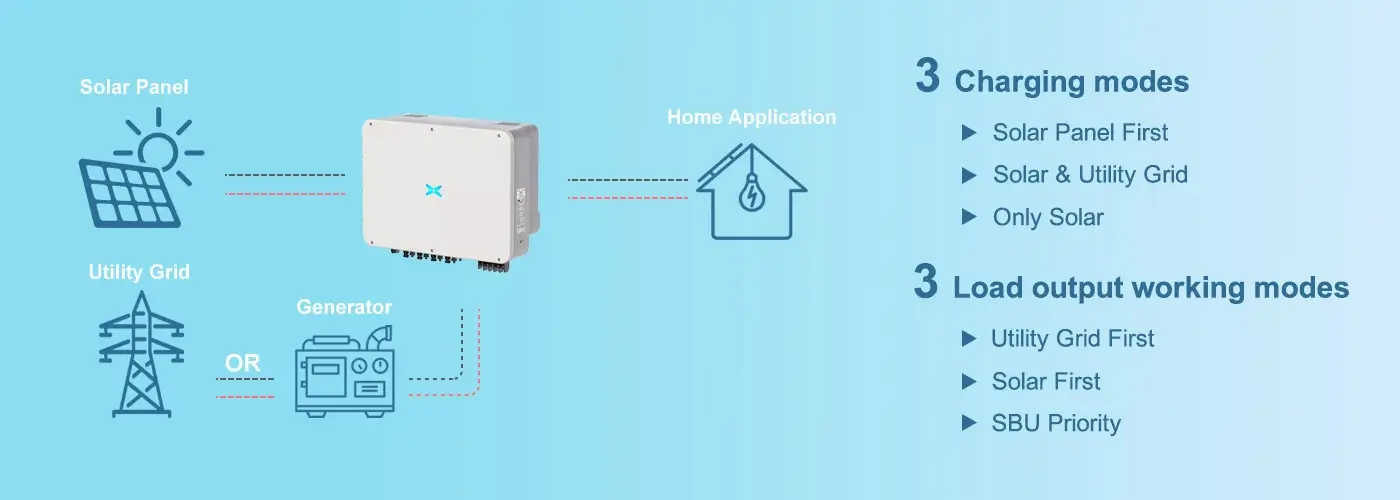

A grid-tied inverter for home backup converts DC power (from solar panels) into AC power synchronized with the utility grid. It tracks maximum power point (MPPT) for optimal energy harvest, adjusts voltage/frequency to match grid standards, and ensures safety via anti-islanding protection. When grid power fails, it automatically disconnects. Advanced models enable smart features like feed-in tariffs and remote monitoring
| Item Name | 16kw Inverter System for Home Grid-tied | ||||
| Model | CX-IT003 | MPPT Voltage Range | 200V-1000V | ||

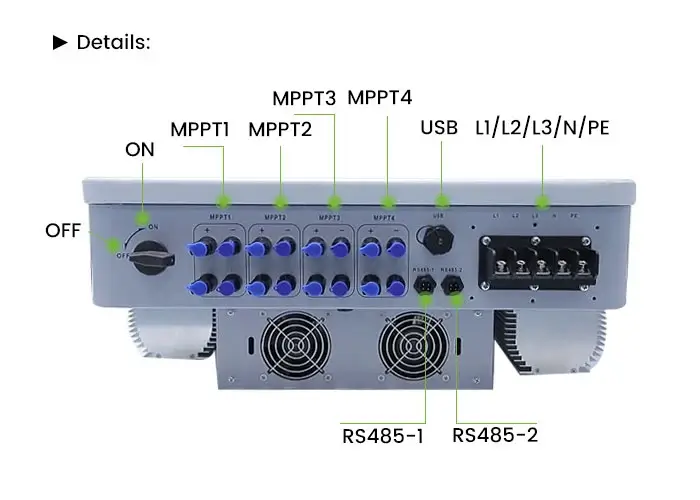

| Inverter Type | Grid-tied | Number of MPPT | 4 | ||
| Max Input Power | 64kW | Efficiency | 98.6% (Peak.) / 98.4% (European Efficiency) | ||
| Max Input Voltage | 1100V | Communication | RS485/USB, WIFI/GPRS/Ethernet(optional) | ||
| Start Voltage | 250V | Dimensions(LxWxH) | 570×420×230mm | ||
| Min.Operating Voltage | 200V | Weight | Approx. 32kg | ||
Get A Free Quotation & More Details. Contact Us Now!
Grid-tied inverter for home backup CX-IT003 is widely used in solar PV systems for homes, businesses, and industrial plants, feeding clean energy into the utility grid. They enable net metering, allowing users to earn credits for excess power. Other applications include commercial solar farms, hybrid renewable systems. Their grid-synchronization capability ensures efficient energy distribution while supporting sustainable power integration.

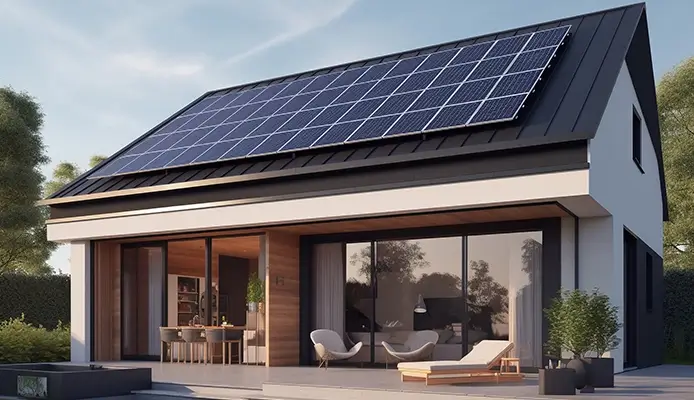

Household Power System

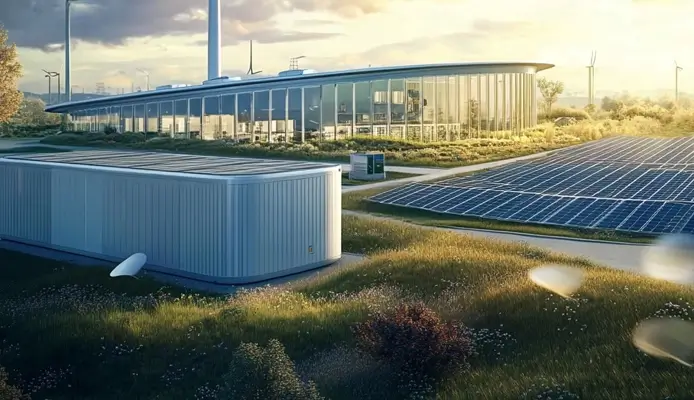

Solar Farm
Profit from delivering electricity to the grid
Optimizing energy distribution
|
64kW Inverter for Home Backup Power Grid-tied Supplier |
|
|
Model |
CX-IT003 |
|
Input (DC) Parameters |
|
|
Max.Input Power |
64kW |
|
Max.Input Voltage |
1100V |
|
Start Voltage / Min. Operating Voltage |
250V / 200V |
|
MPPT Voltage Range |
200V~1000V |
|
Number of MPp Trackers / String |
4/2 |
|
Max. Current per MPPT |
26A |
|
Output (AC) Parameters |
|
|
Max.Output Current |
64.3A |
|
Rated Output Power |
40kW |
|
Max.Output Power |
44kVA |
|
Rated Grid Frequency |
50Hz/60Hz |
|
Rated Grid Voltage |
230Vac/400Vac,3L+N+PE /3L+PE |
|
Power Factor |
-0.8~ +0.8 (adjustable) |
|
THDi |
<3%(Rated Power) |
|
Efficiency |
|
|
Max.Efficiency |
98.6% |
|
European Efficiency |
98.4% |
|
MPPT Efficiency |
99.90% |
|
Protection |
|
|
Protection |
DC switch, Input over voltage protection, AC short circuit protection, ACover current protection, lsolation protection, PV string protection, DC ARCfault protection, RCD protection, Surge protection, Anti-islanding protectionOver temperature protection, Grouding fault monitoring,Grid monitoring, Single/Multiple inverter anti-reverse protection, etc. |
|
Communication |
|
|
Display |
LED/LCD /WiFi+App |
|
Communication |
Standard:RS485/USB Optional:WiFi/GPRS/Ethernet |
|
Standard Compliance |
|
|
Grid Connection Standards |
IEC 61727,IEC 62116,IEC 60068,IEC 61683, VDE-AR-N 4110:2018, VDE-AR-N 4105:2018,VDE-AR-N 4120:2018,EN 50549,AS/NZS 4777.2:2015, CE1 0-21. VDE 01261-1/A1 VFR 2014.UTE C15-712-1:2013, DEWA DRRG, NRS 097-2-1, MEAVPEA, C10/11,G98/G99 |
|
Safety / EMC |
IEC 62109-1:2010,IEC62109-2:2011,EN 61000-6-2:2005,EN 61000-6-3:2007/A1:2011 |
|
General Data |
|
|
Dimensions(WxHxD) |
570 x 420 x 230 mm |
|
Weight |
32KG |
|
Operating Temperature Range |
-30°C~+60°C (derating above 45℃) |
|
Cooling Method |
Smart Cooling |
|
Protection Degree |
IP66 |
|
Max.Operating Altitude |
≤4000m (derating above 3000m) |
|
Relative Humidity |
0～100% |
|
Topology |
Transformerless |
|
Night Power Consumption |
<1W |
An inverter converts DC (direct current) electricity from solar panels or batteries into AC (alternating current) for household or grid use.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Grid-tied inverters can operate without batteries, feeding excess solar power directly to the grid. Off-grid systems require batteries.
