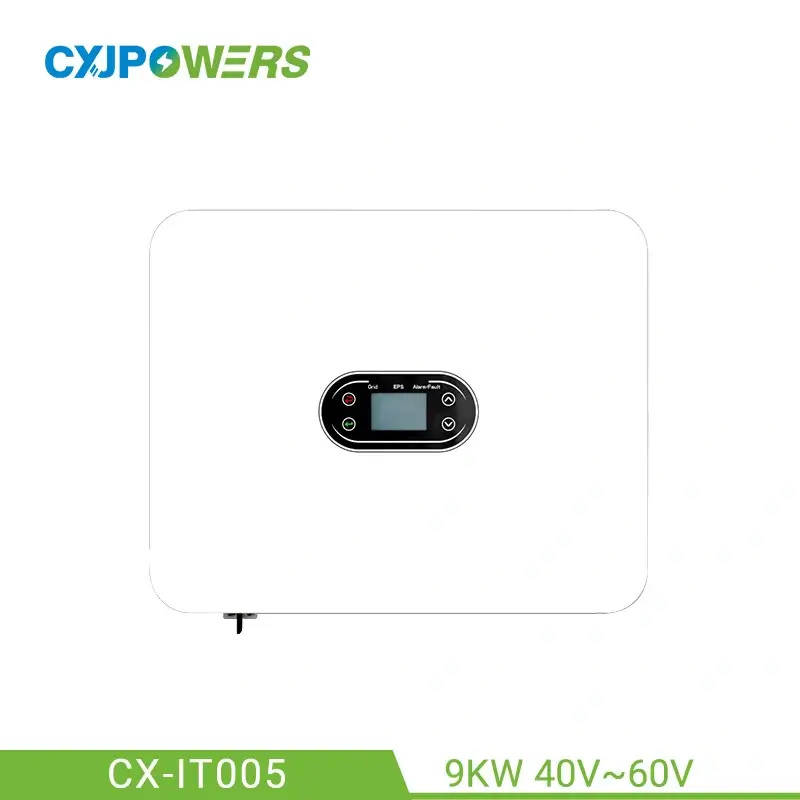

9kW Hybrid inverters, high efficiency.For solar system for home, safe and stablity. Intelligent control.

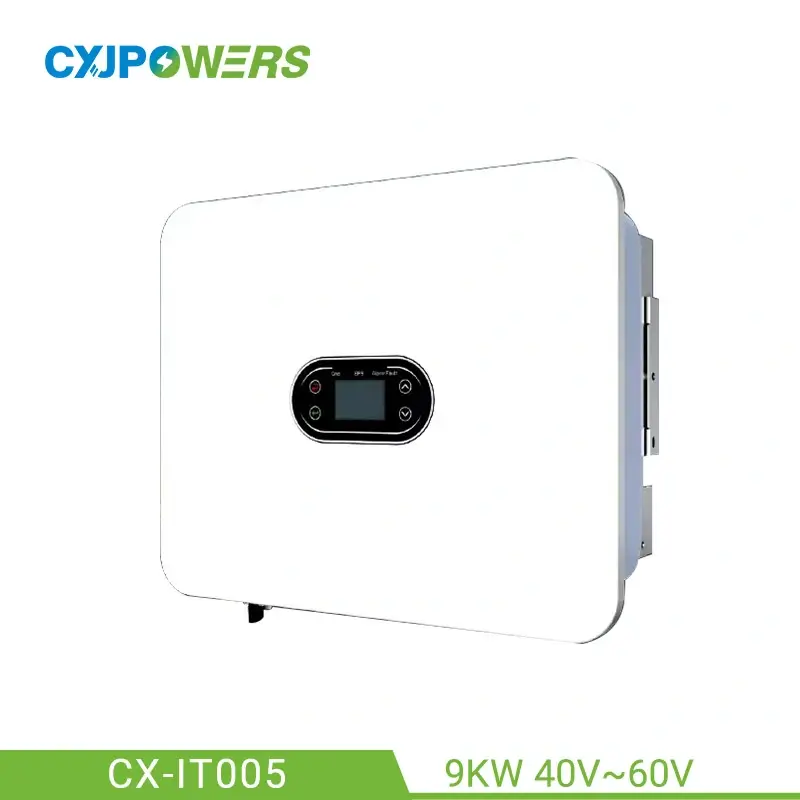

Model: CX-IT005
Inverter Type: Hybrid
Rated Power: 9kW (Peak Eff. 97.5%)
Battery Voltage: 40V~60V
AC Output: 230Vac, 50Hz/60Hz
Communication: RS485,CAN,WIFI/4G/LAN,Bluetooth(optional)
Operating Temp.: -25℃-60℃

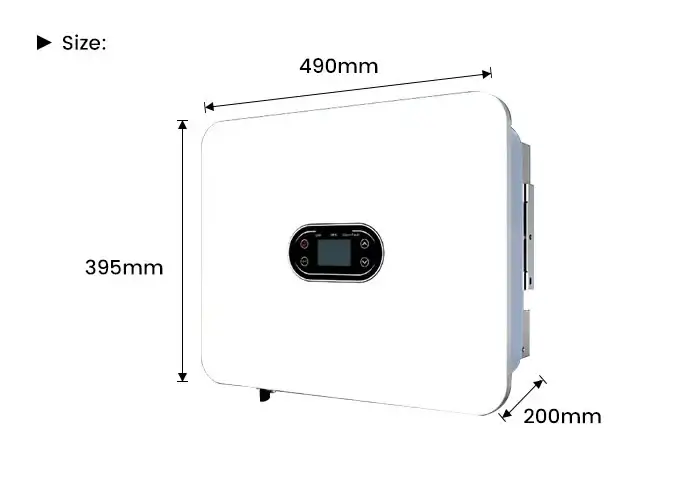

Dimension: 490×395×200mm
Weight: ≈21.3kg
MOQ: ≥1pcs
CXJPowers 9kW hybrid inverter for home use with battery efficiently converts solar panel DC power into household AC power while supporting battery storage integration for self-consumption, excess energy storage, or peak-valley arbitrage. With a broad MPPT voltage range of 100–550V DC, it ensures stable performance under diverse weather conditions. It offers flexible multi-mode operation (grid-tied, off-grid, or hybrid), high conversion efficiency (>97.5%), and intelligent energy management for optimal power utilization.
9000W Hybrid Inverter
Green energy and save electricity costs
Adapt to various sunlight conditions.
Real-time monitoring and view the parameter
User-friendly, good use experience
Effectively extend equipment life.
Provide reliable power for various devices.
98.4% Peak Efficiency, low energy loss
Multiple protections to ensure safe operation.
9kW hybrid inverter for home use with battery CX-IT005 has multiple safety protections (low voltage / anti-islanding protection), supports Bluetooth/WiFi remote monitoring, uses pure sine wave output, and is compatible with all kinds of electrical appliances. Its 100V-550V wide MPPT voltage range ensures efficient operation in low-light environments, and its 98.4% ultra-high conversion efficiency greatly increases power generation. The silent design (<25dB) and ultra-low standby power consumption make it easier to use, making it an ideal choice for home and industrial and commercial photovoltaic systems.

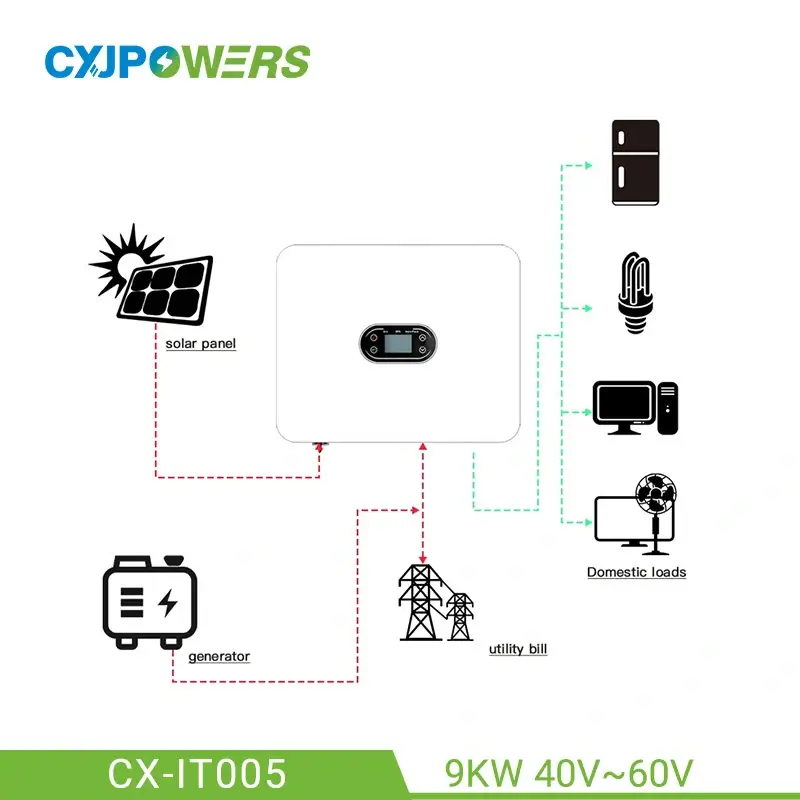

This hybrid inverter for home use with battery intelligently manages power flow with dual operating modes. In grid-tied mode, it prioritizes solar energy while storing excess in batteries or feeding back to the grid. When off-grid, it automatically switches to battery power for uninterrupted supply. The system offers flexible charging options (solar/grid/hybrid) with time-based optimization, and delivers pure sine wave output through three configurable modes (grid-tied/off-grid/hybrid). Featuring MPPT tracking and 98.4% conversion efficiency, it ensures optimal performance for 24/7 power needs.
| Item Name | 9kW Hybrid Inverter for Home Use With Battery | ||||
| Model | CX-IT005 | Rated Power | 9000W | ||
| Inverter Type | Hybrid | Efficiency | 97.5% (Peak.) | ||
| Battery Type | Lithium | Communication | RS485, CAN, WIFI/4G/LAN, Bluetooth(optional) | ||
| Battery Voltage | 40V~60V | Dimensions(LxWxH) | 490×395×200mm | ||
| MPPT Voltage Range | 100VDC-550VDC | Weight | Approx. 21.3kg | ||
Get A Free Quotation & More Details. Contact Us Now!

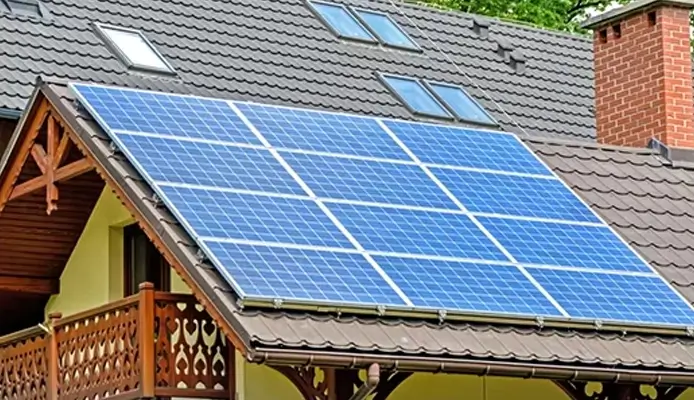

CX-IT005 hybrid inverter for home use with battery is suitable for scenarios such as household rooftop photovoltaics, industrial and commercial power stations, off-grid energy storage and emergency power supply. It is compatible with various photovoltaic modules and battery packs to provide stable and clean electricity for residences, factories, base stations, etc., helping to reduce electricity costs and improve energy self-sufficiency.
Household Power System
Car Charging Station

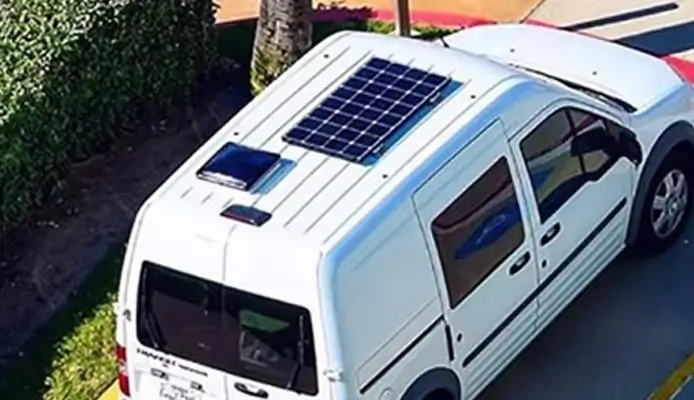

RV or Ship System

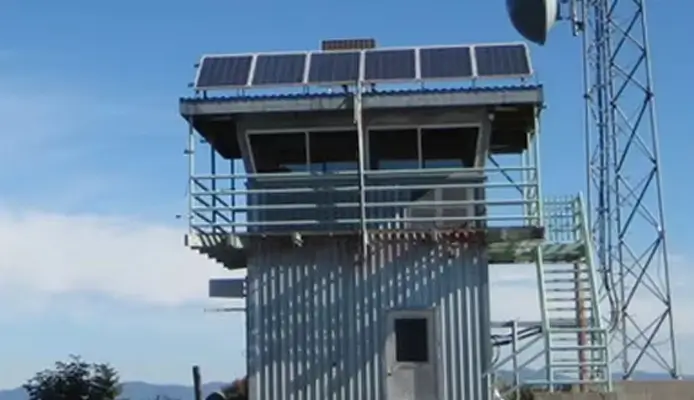

Base Station System
|
9kW Hybrid Inverter for Home Use With Battery Supplier |
|
|
Model |
CX-IT005 |
|
Battery Parameters |
|
|
Battery type |
Lithium battery |
|
Battery Voltage Range (V) |
40-60 |
|
Maximum charge and discharge current (A) |
100 |
|
Battery communication |
CAN |
|
Input parameters (DC) |
|
|
Maximum input power (W) |
9000 |
|
Maximum input voltage (V) |
600 |
|
Starting voltage (V) |
100 |
|
Rated voltage (V) |
360 |
|
MPPT voltage range |
100-500 |
|
MPPT quantity |
2 |
|
Maximum input current (A) |
16 |
|
Maximum input Short Circuit Current (A) |
20 |
|
Output parameters (AC) |
|
|
Rated output power (Kva) |
6000 |
|
Maximum output power (Kva) |
6600 |
|
Maximum output current (A) |
30 |
|
Rated voltage (V) |
230 |
|
Rated voltage (V) |
50 |
|
Total harmonic distortion of current (@ rated power) |
<3% (rated power) |
|
Power factor |
0.8 lead ~0.8 lag |
|
Off-grid output |
|
|
Maximum output power (Kva) |
6000 |
|
Maximum output current (A) |
30 |
|
Peak output power, time (KW, s) |
9，10 |
|
Rated output voltage, frequency (VHz) |
230，50 |
|
THDv(@ rated power) |
<3% |
|
Switching time (ms) |
<10 |
|
Efficiency |
|
|
Maximum efficiency |
>97.5% |
|
European efficiency |
>97.2% |
|
Charge and discharge efficiency |
>95% |
|
General paremeter |
|
|
Dimensions(WxHxD) |
490x395x200 mm |
|
Weight |
21.35kg |
|
Operating temperature range |
-25℃~ +60℃ |
|

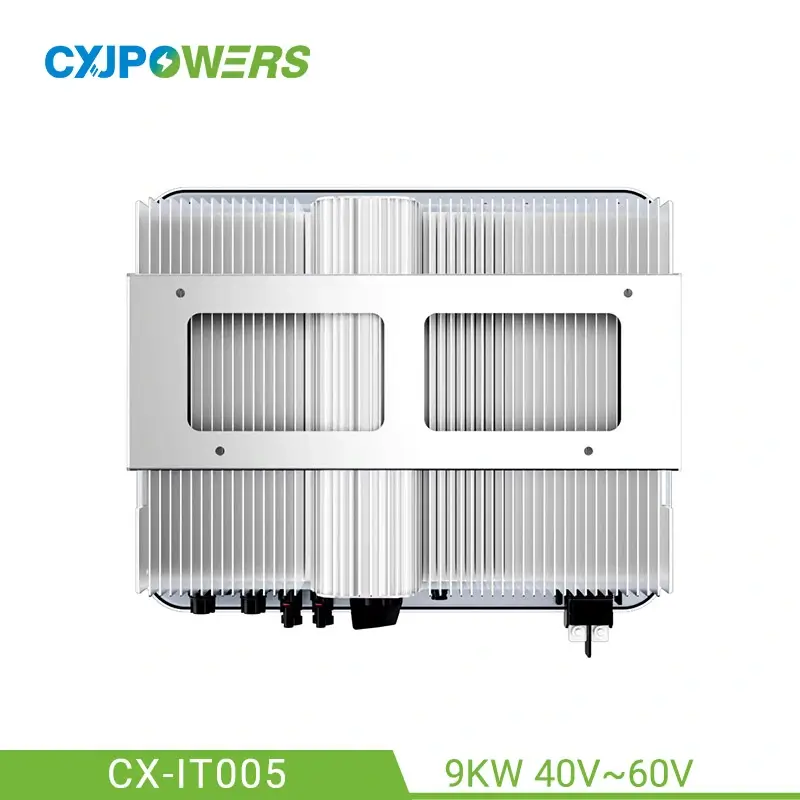

Cooling Method |
Natural heat dissipation |
|
Maximum high working altitude |
4000m |
|
Relative humidity |
0~100% |
|
Protection function |
Anti-reverse/insulation impedance/ground protection, overcurrent/overvoltage protection, battery soft start protection, AFCI protection, lightning protection (Level 2) |
|
Level of protection |
IP66 |
|
Noise (dB) |
<25dB |
|
Connection |
G98/G99,VDE-AR-N 4105/NDE V0124,EN 50549-1,VDE 0126/UTE C 15/VFR:2019RD 1699/RD244/UNE206006/UNE 206007-1, CEIO-21.C10/11,NRS 097-2-1,TOR,EIFS 2018.2,IEC 62116,IEC 1727,IEC60068IEC 61683EN 50530,MEA,PEA |
|
Safety regulations/EMC standards |
IEC 62109-1/-2,EN 61000-6-1/-3 |
|
Display and communication |
|
|
Display |
LCD |
|
Communication |
RS485、CAN、WIFI/4G/LAN、Bluetooth(optional) |
An inverter converts DC (direct current) electricity from solar panels or batteries into AC (alternating current) for household or grid use.
Sample order: 100% payment before shipment; Bulk order: 30% deposit before production, 70% balance before shipment.
Match the inverter's wattage to your total load requirements, plus a 20-30% buffer for surge power (e.g., 3000W for a 2400W load).
Express(DHL, FedEx, UPS), air dispatch, sea dispatch both are available, by your choice.
